Product Summary
The MAX9650ATA+T is a single- and dual-channel VCOM amplifier with rail-to-rail inputs and outputs. It can drive up to 1300mA of peak current per channel and operate up to 20V. The device is designed to source and sink a high current quickly to hold the VCOM voltage stable in large TFT-LCD panels. The MAX9650ATA+T features 40V/PAs slew rate an 35MHz bandwidth to quickly settle outputs for 120Hz frame rate and full HD television. Applications include: TFT-LCD Panels, Instrument Control Voltage Sources.
Parametrics
MAX9650ATA+T absolute maximum ratings: (1)Supply Voltage (V to GND): -0.3V to +22V; (2)Operating Temperature Range: -40℃ to +125℃; (3)Any Other Pin to GND: -0.3V to (VDD + 0.3V); (4)Junction Temperature: +150℃; (5)IN_+/IN_- (current): ±20mA; (6)Storage Temperature Range: -65℃ to +150℃; (7)OUT_ (current): 1.3A; (8)Lead Temperature (soldering, 10s): +300℃,; (9)Continuous Power Dissipation (TA= +70℃) 5-Pin SOT23 (derate 3.7mW/℃ above +70℃): 297.4mW; 8-Pin μMAX-EP (derate 12.9mW/℃ above +70℃): 1030.9mW; 8-Pin TDFN-EP (derate 23.8mW/℃, above +70℃): 1951.2mW.
Features
MAX9650ATA+T features: (1)1300mA Peak Output Current; (2)Rail-to-Rail Inputs and Outputs; (3)Operates Up to 20V ; (4)40V/μs Slew Rate; (5)35MHz Bandwidth; (6)5mA Quiescent Current per Channel; (7)Excellent Heat Dissipation (Exposed Pad).

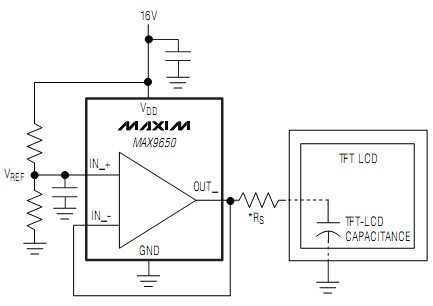

Diagrams
