Product Summary
The FM24CL64B-GTR is a 64-kilobit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or FRAM is nonvolatile and performs reads and writes like a RAM. The FM24CL64B-GTR provides reliable data retention for 45 years while eliminating the complexities, overhead, and system level reliability problems caused by EEPROM and other nonvolatile memories. The FM24CL64B-GTR performs write operations at bus speed. No write delays are incurred. The next bus cycle may commence immediately without the need for data polling.
Parametrics
FM24CL64B-GTR absolute maximum ratings: (1)Power Supply Voltage with respect to VSS:-1.0V to +5.0V ; (2)Voltage on any pin with respect to VSS:-1.0V to +5.0V and VIN < VDD+1.0V; (3)Storage Temperature:-55℃ to +125℃; (4)Lead Temperature (Soldering, 10 seconds):300℃; (5)Electrostatic Discharge Voltage: Human Body Model(JEDEC Std JESD22-A114-B):4kV, Machine Model(JEDEC Std JESD22-A115-A):300V; (6)Package Moisture Sensitivity Level:MSL-1 .
Features
FM24CL64B-GTR features: (1)Organized as 8,192 x 8 bits ; (2)Unlimited Read/Write Cycles ; (3)45 year Data Retention ; (4)NoDelay Writes ; (5)Advanced High-Reliability Ferroelectric Process ; (6)Up to 1 MHz maximum bus frequency ; (7)Direct hardware replacement for EEPROM ; (8)Supports legacy timing for 100 kHz & 400 kHz ; (9)Low Power Operation ; (10)True 2.7V to 3.6V Operation ; (11)75 μA Active Current (100 kHz) ; (12)1 μA Standby Current ; (13)Industrial Temperature -40℃ to +85℃; (14)8-pin SOIC and 8-pin DFN Packages ; (15)“Green” Packaging Options.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

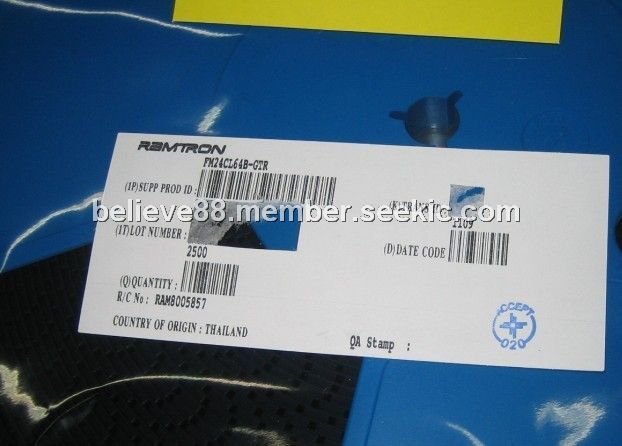

 FM24CL64B-GTR |
Ramtron |
F-RAM 64Kb Serial I2C 3V FRAM |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
FM240 |
Rectron |
Diodes (General Purpose, Power, Switching) GP Si Rectifier SMB,2A,40V |
Data Sheet |
|
|
||||||||||||
|
FM240A |
Rectron |
Diodes (General Purpose, Power, Switching) GP Si Rectifier SMB,2A,40V |
Data Sheet |
|
|
||||||||||||
|
FM240A-W |
Rectron |
Schottky (Diodes & Rectifiers) 2A 40V Schottky |
Data Sheet |
|
|
||||||||||||
|
FM240L |
Rectron |
Schottky (Diodes & Rectifiers) SM Schot Bar Rect SMB,2A,40V |
Data Sheet |
|
|
||||||||||||
|
FM240-L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
FM240-LN |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
