Product Summary

The BC817-40 is a NPN general purpose transistor. It is in a SOT23 plastic package. The device is designed for general purpose switching and amplification.

Parametrics

BC817-40 absolute maximum ratings: (1)VCBO collector-base voltage: max=50 V; (2)VCEO collector-emitter voltage: max=45 V; (3)VEBO emitter-base voltage: max=5 V; (4)IC collector current (DC): max=500 mA; (5)ICM peak collector current: max=1 A; (6)IBM peak base current: max=200 mA; (7)Ptot total power dissipation Tamb: max=250 mW; (8)Tstg storage temperature: min=-65℃, max=+150 ℃; (9)Tj junction temperature: max=150 ℃; (10)Tamb operating ambient temperature: min=-65℃, max=+150 ℃.

Features

BC817-40 features: (1)High current (max. 500 mA); (2)Low voltage (max. 45 V).

Diagrams

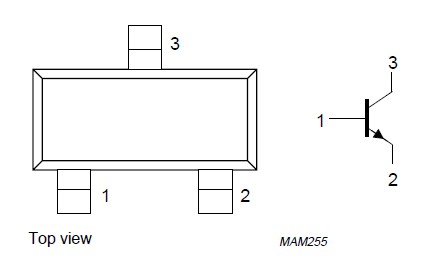

BC817-40 simplified outline

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BC817-40
BC817-40

Taiwan Semiconductor

Transistors Bipolar (BJT) Transistor 300mW

Data Sheet

0-3000: $0.02
3000-6000: $0.02
BC817-40 /T3
BC817-40 /T3

NXP Semiconductors

Transistors Bipolar (BJT) TRANS GP TAPE-13

Data Sheet

Negotiable
BC817-40,215
BC817-40,215

NXP Semiconductors

Transistors Bipolar (BJT) NPN GP 500 45V

Data Sheet

0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BC817-40,235
BC817-40,235

NXP Semiconductors

Transistors Bipolar (BJT) TRANS GP TAPE-13

Data Sheet

0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BC817-40-7
BC817-40-7

Diodes Inc.

Transistors Bipolar (BJT) NPN BIPOLAR

Data Sheet

Negotiable
BC817-40-7-F
BC817-40-7-F

Diodes Inc.

Transistors Bipolar (BJT) NPN BIPOLAR

Data Sheet

0-1: $0.23
1-10: $0.15
10-100: $0.07
100-250: $0.05
BC817-40E6327
BC817-40E6327

Infineon Technologies

Transistors Bipolar (BJT) NPN 45 V 500 mA

Data Sheet

Negotiable
BC817-40LT1
BC817-40LT1

ON Semiconductor

Transistors Bipolar (BJT) 500mA 50V NPN

Data Sheet

Negotiable
