Product Summary
The ADM202EARNZ is robust, high speed, 2-channel RS-232/V.28 interface devices that operate from a single 5 V power supply. Both products are suitable for operation in harsh electrical environments and are compliant with the EU directive on EMC (89/336/EEC). Both the level of electromagnetic emissions and immunity are in compliance. EM immunity includes ESD protection in excess of ±15 kV on all I/O lines, fast transient/burst protection (1000-4-4), and radiated immunity (1000-4-3). EM emissions include radiated and conducted emissions as required by Information Technology Equipment EN55022, CISPR22.
Parametrics
ADM202EARNZ absolute maximum ratings: (1)VCC: -0.3 V to +6 V; (2)Power Dissipation N-16 : 450 mW; (3)Operating Temperature Range, Industrial (A Version): –40°C to +85°C; (4)Storage Temperature Range: –65°C to +150°C; (5)Lead Temperature (Soldering, 10 sec): 300°C; (6)EFT Rating (IEC1000-4-4) (I/O Pins): ±2 kV.
Features
ADM202EARNZ features: (1)Complies with 89/336/EEC EMC directive ; (2)ESD protection to IEC1000-4-2 (801.2) ; (3)±8 kV: contact discharge ; (4)±15 kV: air-gap discharge ; (5)±15 kV: human body model ; (6)EFT fast transient/burst immunity (IEC1000-4-4) ; (7)Low EMI emissions (EN55022) ; (8)230 kbits/s data rate guaranteed.

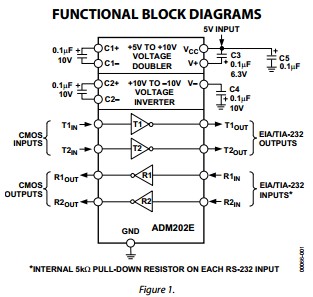

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM202EARNZ-REEL |
|
IC TXRX RS232 5V 15KV 16SOIC |
Data Sheet |
|
|
||||||||||
|
ADM202EARNZ-REEL7 |
|
IC TXRX RS232 5V 15KV 16SOIC |
Data Sheet |
|
|
||||||||||
