UC3843BNG

high performance, fixed frequency, 30V, current mode controller, SOIC-14

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.28 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.25~0.28

PartNumber:: UC3843BNG

Brand:: ON Semiconductor - ON | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. JASON LU's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-22

From Other Seller

Part Number:UC3843BNG
US $0.25 - 0.28
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

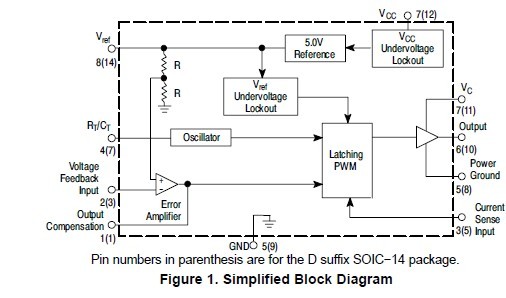

The UC3843BNG is a high performance fixed frequency current mode controller. It is specifically designed for Off-Line and DC-DC converter applications offering the designer a cost-effective solution with minimal external components. This UC3843BNG feature a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET. The feature of UC3843BNG included are protective features consisting of input and reference undervoltage lockouts each with hysteresis, cycle by cycle current limiting, programmable output deadtime, and a latch for single pulse metering.

Parametrics

UC3843BNG absolute maximum ratings: (1)Bias and Driver Voltages (Zero Series Impedance, see also Total Device spec), VCC, VC: 30V; (2)Total Power Supply and Zener Current (ICC + IZ): 30mA; (3)Output Current, Source or Sink, IO: 1.0A; (4)Output Energy (Capacitive Load per Cycle), W: 5.0μJ; (5)Current Sense and Voltage Feedback Inputs, Vin: -0.3 to +5.5V; (6)Error Amp Output Sink Current, IO: 10mA; (7)Maximum Power Dissipation @ TA = 25℃, PD: 862mW

Features

UC3843BNG features: (1)Trimmed Oscillator for Precise Frequency Control; (2)Oscillator Frequency Guaranteed at 250 kHz; (3)Current Mode Operation to 500 kHz; (4)Automatic Feed Forward Compensation; (5)Latching PWM for Cycle By Cycle Current Limiting; (6)Internally Trimmed Reference with Undervoltage Lockout; (7)High Current Totem Pole Output; (8)Undervoltage Lockout with Hysteresis; (9)Low Startup and Operating Current; (10)Pb?Free Packages are Available.
