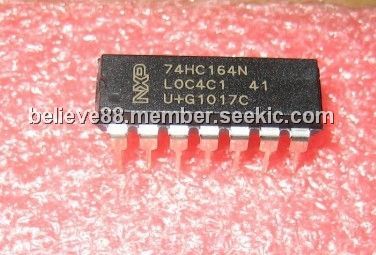

74HC164N

high-speed Si-gate CMOS device, -0.5 to 7V, ±25 mA, Multiple package options

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.12~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.12~0.13

PartNumber:: 74HC164N

Brand:: NXP Semiconductors - nxp | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. JASON LU's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-04

From Other Seller

Part Number:74HC164N
US $0.12 - 0.13
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74HC164N is a high-speed Si-gate CMOS device. It is pin compatible with Low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC164N is an 8-bit edge-triggered shift register with serial data entry and an output from each of the eight stages. Data is entered serially through one of two inputs (DSA or DSB); either input can be used as an active HIGH enable for data entry through the other input. Both inputs must be connected together or an unused input must be tied HIGH.

Parametrics

74HC164N absolute maximum ratings: (1)VCC supply voltage: min=-0.5 V, max=+7 V; (2)IIK input diode current: max=±20 mA; (3)IOK output diode current: max=±20 mA; (4)IO output source or sink current: max=±25 mA; (5)ICC, IGND VCC or GND current: max=±50 mA; (6)Tstg storage temperature: min=-65 ℃, max=+150 ℃; (7)Ptot total power dissipation DIP14 package: max=750 mW; SO14; SSOP14; TSSOP14; DHVQFN14 package: max=500 mW.

Features

74HC164N features: (1)Gated serial data inputs; (2)Asynchronous master reset; (3)Complies with JEDEC standard no. 7A; (4)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V.; (5)Multiple package options; (6)Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃.
