Product Summary

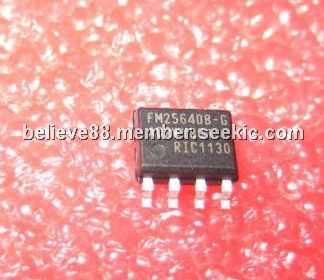

The FM25640B-GTR is a 64-kilobit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or FRAM is nonvolatile but operates in other respects as a RAM. It provides reliable data retention for 10 years while eliminating the complexities, overhead, and system level reliability problems caused by EEPROM and other nonvolatile memories. These capabilities make the FM25640B-GTR ideal for nonvolatile memory applications requiring frequent or rapid writes.
Parametrics
FM25640B-GTR absolute maximum ratings: (1)VIN, VOUT Voltage on Any Pin with Respect to VSS: -1.0V to VDD+1 V; (2)IIN, IOUT DC Current on Any Pin: 5 mA; (3)TSTG Storage Temperature: -55℃ to + 125℃; (4)TLEAD Lead Temperature (Soldering, 10 seconds): 300℃.
Features
FM25640B-GTR features: (1)64K bit Ferroelectric Nonvolatile RAM; (2)Very Fast Serial Peripheral Interface - SPI; (3)Sophisticated Write Protection Scheme: Hardware Protection; Software Protection; (4)Low Power Consumption: 10μA Standby Current; (5)Industry Standard Configuration: Industrial Temperature -40℃ to +85℃; 8-pin SOIC.

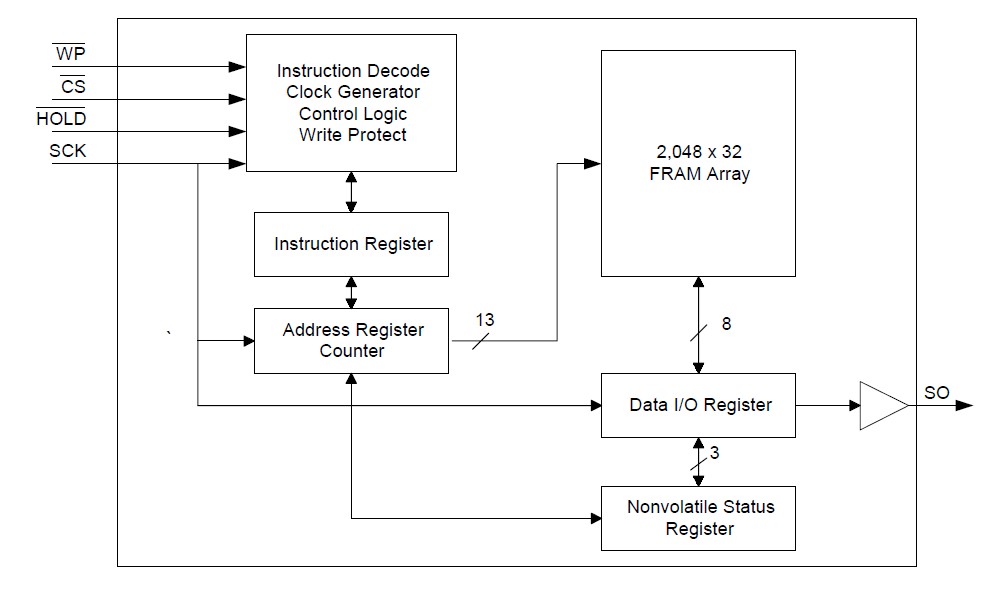

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM25640B-GTR |
Ramtron |
F-RAM 64Kb Serial SPI 5V FRAM |
Data Sheet |
|
|
||||||||
