Product Summary

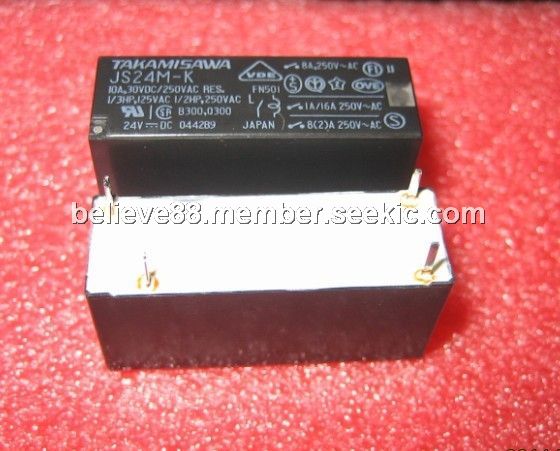

The JS24M-K is a power relay.

Parametrics

JS24M-K specifications: (1)Rating: 8A 250 VAC / 24 VDC; (2)Max. carrying current: 10A; (3)Max. switching power: 2,000VA/192W; (4)Max. switching voltage: 150VDC/400VAC; (5)Min. switching load: 10mA 5VDC; (6)Max. switching current: 10A; (7)Operating temperature: -40℃ to +85℃ (no frost); (8)Operate: Max. 10ms (at nominal voltage, without bounce); (9)Release (without diode): Max. 5ms (at nominal voltage, without bounce).

Features

JS24M-K features: (1)UL, CSA, VDE, SEV, SEMKO, FIMKO, OVE, BSI recognized; (2)UL class B (130℃) insulation; (3)1 form A (SPST-NO) or 1 form C (SPDT) contact; (4)High sensitivity in small package: Operating power: 0.11 to 0.14 W; Nominal power: 0.22 to 0.29 W; (5)Plastic materials: UL 94 flame class V-0; UL CTI level class 2; (6)Plastic sealed type; (7)Lead Free since date code: 0438B9, 0434R - Please see page 6 for more information.

Diagrams

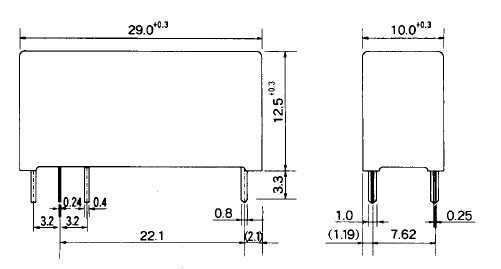

JS24M-K dimensions
