Product Summary

The FM3164-GTR is a Integrated Processor Companion with Memory. It includes the most commonly needed functions for processor-based systems. Major features include nonvolatile memory available in various sizes, real-time clock, low-VDD reset, watchdog timer, nonvolatile event counter, lockable 64-bit serial number area, and general purpose comparator that can be used for an early power-fail (NMI) interrupt or other purpose. The FM3164-GTR operates from 2.7 to 5.5V. It provides nonvolatile RAM available in sizes including 4Kb, 16Kb, 64Kb, and 256Kb versions. The FM3164-GTR companion includes commonly needed CPU support functions.

Parametrics

FM3164-GTR absolute maximum ratings: (1)Power Supply Voltage with respect to VSS:-1.0V to +7.0V ; (2)Voltage on any signal pin with respect to VSS:-1.0V to +7.0V and VIN ≤ VDD+1.0V; (3)Backup Supply Voltage:-1.0V to +4.5V ; (4)Storage Temperature:-55℃ to + 125℃ ; (5)Lead Temperature (Soldering, 10 seconds):260℃; (6)Electrostatic Discharge Voltage: Human Body Model(JEDEC Std JESD22-A114-B):4kV, Charged Device Model(JEDEC Std JESD22-C101-A):1kV, Machine Model (JEDEC Std JESD22-A115-A):250V ; (7)Package Moisture Sensitivity Level:MSL-1.

Features

FM3164-GTR features: (1)Serial Nonvolatile Memory ; (2)Real-time Clock (RTC) ; (3)Low Voltage Reset ; (4)Watchdog Timer ; (5)Early Power-Fail Warning/NMI ; (6)Two 16-bit Event Counters ; (7)Serial Number with Write-lock for Security ; (8)Backup Current under 1 μA ; (9)Seconds through Centuries in BCD format ; (10)Tracks Leap Years through 2099 ; (11)Uses Standard 32.768 kHz Crystal (6pF) ; (12)Software Calibration ; (13)Supports Battery or Capacitor Backup ; (14)Active-low Reset Output for VDD and Watchdog ; (15)Programmable VDD Reset Trip Point ; (16)Manual Reset Filtered and Debounced ; (17)Programmable Watchdog Timer ; (18)Dual Battery-backed Event Counter Tracks System Intrusions or other Events ; (19)Comparator for Early Power-Fail Interrupt ; (20)64-bit Programmable Serial Number with Lock ; (21)Up to 1 MHz Maximum Bus Frequency ; (22)Supports Legacy Timing for 100 kHz & 400 kHz ; (23)Device Select Pins for up to 4 Memory Devices ; (24)RTC, Supervisor Controlled via 2-wire Interface.

Diagrams

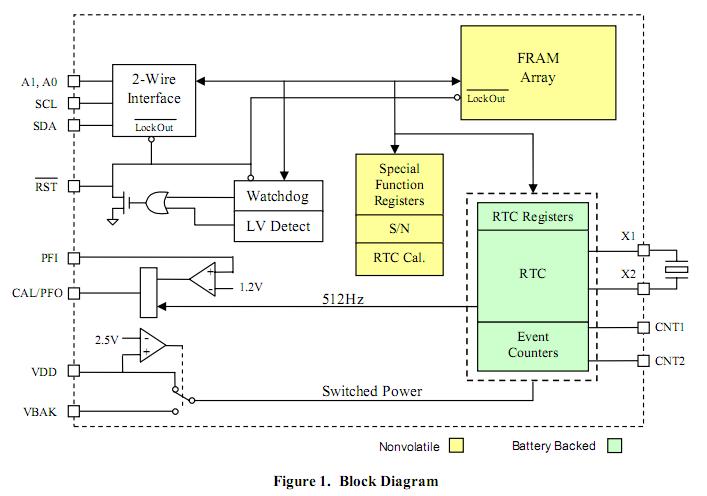

FM3164-GTR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FM3164-GTR
FM3164-GTR

Ramtron

F-RAM 64K w/RTC Pwr Mon WDT Bat Sw PF

Data Sheet

0-2500: $2.70
