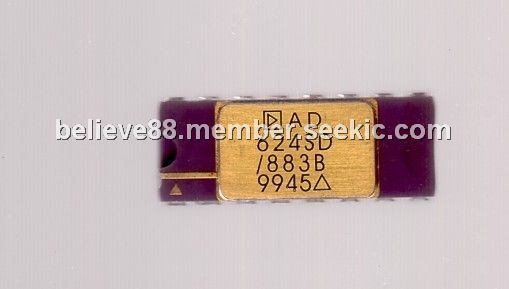

Product Summary

The AD624SD/883 is a high precision, low noise, instrumentation amplifier designed primarily for use with low level transducers, including load cells, strain gauges and pressure transducers. An outstanding combination of low noise, high gain accuracy, low gain temperature coefficient and high linearity make the AD624SD/883 ideal for use in high resolution data acquisition systems. A 25 MHz gain bandwidth product, 5 V/μs slew rate and 15 μs settling time permit the use of the device in high speed data acquisition applications.

Parametrics

AD624SD/883 absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 420 mW; (3)Input Voltage: ±VS; (4)Differential Input Voltage: ±VS; (5)Output Short Circuit Duration: Indefinite; (6)Storage Temperature Range: –65℃ to +150℃; (7)Operating Temperature Range: –55℃ to +125℃; (8)Lead Temperature (Soldering, 60 secs): +300℃.

Features

AD624SD/883 features: (1)Low Noise: 0.2 μV p-p 0.1 Hz to 10 Hz; (2)Low Gain TC: 5 ppm max (G = 1); (3)Low Nonlinearity: 0.001% max (G = 1 to 200); (4)High CMRR: 130 dB min (G = 500 to 1000); (5)Low Input Offset Voltage: 25 μV, max; (6)Low Input Offset Voltage Drift: 0.25 μV/℃ max; (7)Gain Bandwidth Product: 25 MHz; (8)Pin Programmable Gains of 1, 100, 200, 500, 1000; (9)No External Components Required; (10)Internally Compensated.

Diagrams

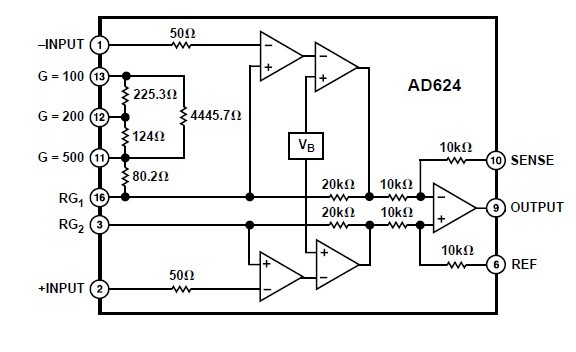

AD624SD/883 block diagram
