MB85RS256APNF-G-JNERE1

256K (32K × 8) Bit, with SPI, -0.5 to +4.0V, FRAM (Ferroelectric Random Access Memory) chip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.40~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.40~2.50

PartNumber:: MB85RS256APNF-G-JNERE1

Brand:: Fujitsu Media Devices Limited - FMDL | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. JASON LU's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-22

From Other Seller

Part Number:MB85RS256APNF-G-JNERE1
US $2.40 - 2.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

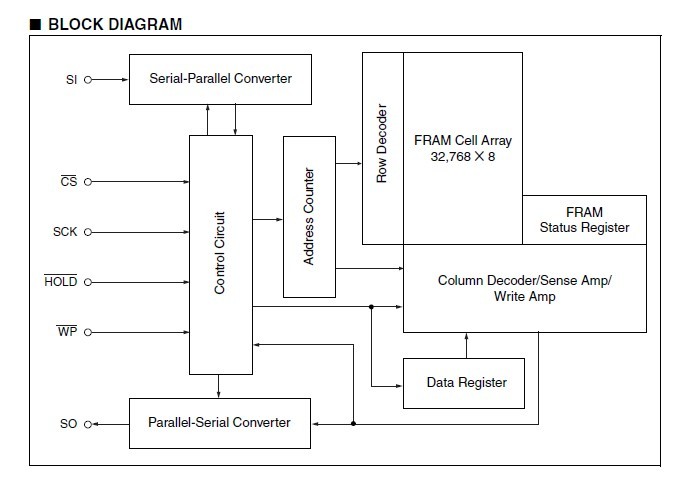

The MB85RS256APNF-G-JNERE1 is a FRAM (Ferroelectric Random Access Memory) chip in a configuration of 32,768 words × 8 bits, using the ferroelectric process and silicon gate CMOS process technologies for forming the nonvolatile memory cells. The MB85RS256APNF-G-JNERE1 adopts the Serial Peripheral Interface (SPI). The MB85RS256APNF-G-JNERE1 is able to retain data without using a back-up battery, as is needed for SRAM. The memory cells used in the MB85RS256APNF-G-JNERE1 can be used for 1010 read/write operations, which is a significant improvement over the number of read and write operations supported by Flash memory and E2PROM. The MB85RS256APNF-G-JNERE1 does not take long time to write data unlike Flash memories nor E2PROM, and MB85RS256APNF-G-JNERE1 takes no wait time.

Parametrics

MB85RS256APNF-G-JNERE1 absolute maximum ratings: (1)Power supply voltage, VDD: -0.5 to +4.0V; (2)Input voltage, VIN: -0.5 to VDD+0.5V; (3)Output voltage, VOUT: -0.5 to VDD+0.5V; (4)Operating temperature, TA: -40 to +85℃; (5)Storage temperature, Tstg: -40 to +125℃.

Features

MB85RS256APNF-G-JNERE1 features: (1)Bit configuration : 32,768 words × 8 bits; (2)Serial Peripheral Interface : SPI (Serial Peripheral Interface) Correspondent to SPI mode 0 (0, 0) and mode 3 (1, 1); (3)Operating frequency : 25 MHz (Max); (4)High endurance : 10 Billion Read/Writes; (5)Data retention : 10 years (+55℃); (6)Operating power supply voltage : 3.0V to 3.6V; (7)Low power operation : Operating power supply current 5 mA (Typ@25 MHz) Standby current 9μA (Typ); (8)Operating temperature range : -40℃ to +85℃; (9)Package : 8-pin plastic SOP (FPT-8P-M02) RoHS compliant.
