Product Summary

The connector AXK6F30347YG is a two-piece structure and 0.5mm pitch. The lower connector bottom surface construction prevents contact and shorts between the PCB and metal terminals. Automatic mounting inspection of AXK6F30347YG is facilitated by the gull-wing terminal shape which makes mounting verification easy.

Parametrics

AXK6F30347YG absolute maximum ratings: (1)Rated current: 0.5A/contact (Max. 10A at total contacts); (2)Rated voltage: 60V AC/DC; (3)Breakdown voltage: 150V AC for 1 minute; (4)Insulation resistance: Min. 1,000MΩ (initial); (5)Contact resistance: Max. 90mΩ; (6)Composite insertion force: Max. 0.981N/contacts × contacts (initial); (7)Composite removal force: Min. 0.0588N/contacts × contacts; (8)Contact holding force: Min. 0.981N/contact.

Features

AXK6F30347YG features: (1)The connector is a two-piece structure and 0.5mm pitch; (2)Strong resistance to adverse environments; (3)Simple locking structure Superior mating operation with click feel to indicate that mating is complete; (4)Mating length 0.55mm.

Diagrams

AXK6F30347YG DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

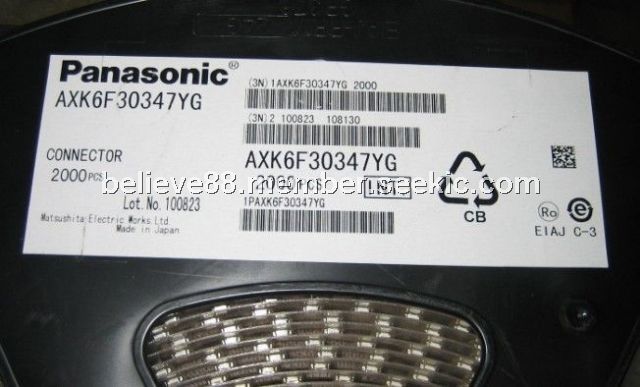

AXK6F30347YG
AXK6F30347YG

Panasonic Electric Works

Board to Board / Mezzanine Connectors CONN HEADER P5KF 30 POS 0.5mm

Data Sheet

0-1390: $0.73
1390-2000: $0.73
2000-2500: $0.70
2500-5000: $0.66
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AXK600235J
AXK600235J

Panasonic Electric Works

Board to Board / Mezzanine Connectors Use AXK600237YG

Data Sheet

Negotiable
AXK600235P
AXK600235P

Panasonic Electric Works

Board to Board / Mezzanine Connectors Use AXK600237YG

Data Sheet

Negotiable
AXK600237YG
AXK600237YG

Panasonic Electric Works

Board to Board / Mezzanine Connectors CONN HEADER BRD/BRD 100 POS 0.5mm

Data Sheet

0-1038: $3.62
1038-1500: $3.62
AXK600245J
AXK600245J

Panasonic Electric Works

Board to Board / Mezzanine Connectors Use AXK600247YG

Data Sheet

Negotiable
AXK600245P
AXK600245P

Panasonic Electric Works

Board to Board / Mezzanine Connectors Use AXK600247YG

Data Sheet

Negotiable
AXK600247YG
AXK600247YG

Panasonic Electric Works

Board to Board / Mezzanine Connectors Conn B-B HDR 100 POS 0.5mm

Data Sheet

0-1040: $1.44
1040-1500: $1.44
1500-2500: $1.39
2500-5000: $1.31
