Product Summary

The FM24CL16-GTR is a 16-kilobit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or FRAM is nonvolatile and performs reads and writes like a RAM. The FM24CL16-GTR provides reliable data retention for 45 years while eliminating the complexities, overhead, and system level reliability problems caused by EEPROM and other nonvolatile memories. Unlike serial EEPROMs, the FM24CL16-GTR performs write operations at bus speed. No write delays are incurred.

Parametrics

FM24CL16-GTR absolute maximum ratings: (1)Power Supply Voltage with respect to VSS:-1.0V to +5.0V ; (2)Voltage on any pin with respect to VSS:-1.0V to +5.0V and VIN < VDD+1.0V ; (3)Storage Temperature:-40℃ to + 125℃; (4)Lead temperature (Soldering, 10 seconds):300℃; (5)Electrostatic Discharge Voltage: Human Body Model(JEDEC Std JESD22-A114-B):4kV, Machine Model(JEDEC Std JESD22-A115-A):300V ; (6)Package Moisture Sensitivity Level:MSL-1.

Features

FM24CL16-GTR features: (1)Organized as 2,048 x 8 bits ; (2)Unlimited Read/Write Cycles ; (3)45 year Data Retention ; (4)NoDelay Writes ; (5)Advanced High-Reliability Ferroelectric Process; (6)Up to 1MHz Maximum Bus Frequency ; (7)Direct Hardware Replacement for EEPROM; (8)Industrial Temperature -40℃ to +85℃; (9)8-pin SOIC and 8-pin TDFN Packages ; (10)TDFN Footprint Conforms to TSSOP-8 ; (11)“Green” Packaging Options.

Diagrams

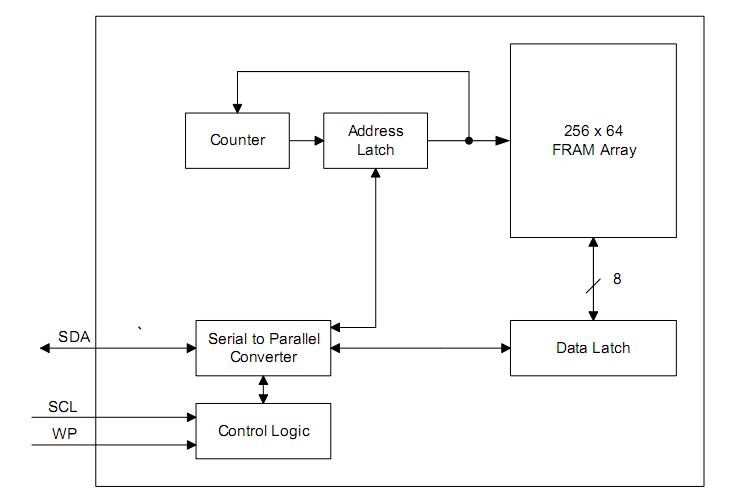

FM24CL16-GTR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

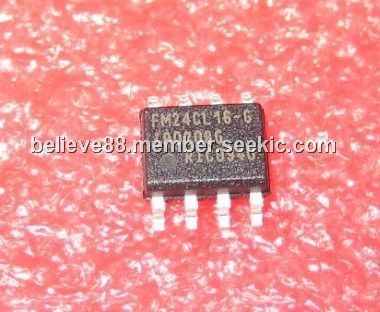

FM24CL16-GTR
FM24CL16-GTR

Ramtron

F-RAM 16K (2Kx8) 2.7V

Data Sheet

Negotiable
