Product Summary

The 52559-0652 is a 0.50mm (.020") Pitch FFC/FPC connector.

Parametrics

52559-0652 specifications: (1)Circuits (Loaded): 6; (2)Contact Position: N/A; (3)Durability (mating cycles max): 20; (4)Flammability: 94V-0; (5)Mated Height (in): 0.154 In; (6)Mated Height (mm): 3.90 mm; (7)Material - Metal: Phosphor Bronze; (8)Material - Plating Mating: Gold; (9)Material - Plating Termination: Tin; (10)Material - Resin: Nylon; (11)Number of Rows: 1; (12)Orientation: Vertical; (13)Pitch - Mating Interface (in): 0.020 In; (14)Pitch - Mating Interface (mm): 0.50 mm; (15)Temperature Range - Operating: -20℃ to +85℃; (16)Termination Interface: Style: Surface Mount; (17)Wire/Cable Type: FFC/FPC; (18)Current - Maximum per Contact: 0.5A; (19)Voltage - Maximum: 50V AC (RMS)/DC.

Diagrams

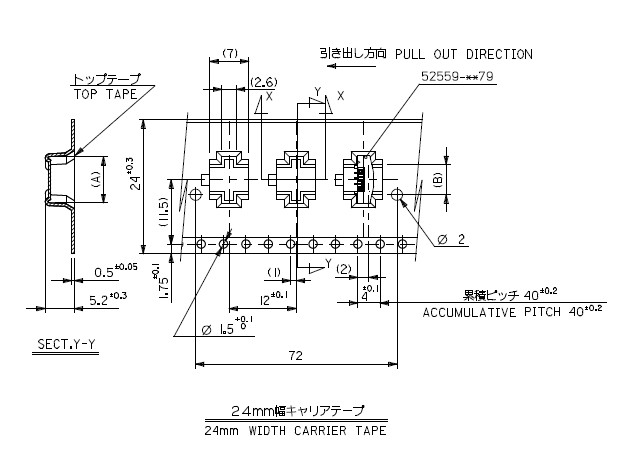

52559-0652 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
52559-0652
52559-0652
Molex
FFC / FPC Connectors 0.5 FPC ZIF SMT ST 6 T ST 6Ckt EmbsTp Pkg
Data Sheet
0-1: $1.18
1-10: $1.13
10-100: $0.82
100-500: $0.70
