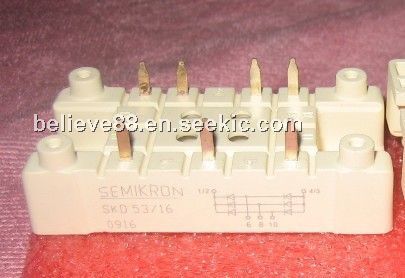

Product Summary

The SKD53/16 is a power bridge rectifier. It can be applied in three phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplied, and battery charger rectifiers.

Parametrics

SKD53/16 absolute maximum ratings: (1)ID: 53A; (2)I(fsm): 370A; (3)Vf: max. 1.5V; (4)rT:max. 13mΩ.

Features

SKD53/16 features: (1)glass passivated silcon chips; (2)low thermal impedance through use of direct copper bonded aluminum substrate base plate; (3)blocking voltage up to 1800V; (4)suitable for PCB mounting and wave soldering ; (5)for applications with high vibrations we recommend to fasten the bridge to the pcb with 4 selftapping screw.

Diagrams

SKD53/16 pin connection
