Product Summary

The PMBT2907A is a PNP switching transistor. PNP switching transistor is in a SOT23 plastic package. NPN complements: PMBT2222 and PMBT2222A.The PMBT2907A can be applied in switching and linear amplification.

Parametrics

PMBT2907A absolute maximum ratings: (1)collector-base voltage: -60 V; (2)emitter-base voltage: -5 V; (3)collector current (DC): -600 mA; (4)peak collector current:- 800mA; (5)peak base current: -200 mA; (6)total power dissipation: 250 mW; (7)storage temperature: -65 to +150°C; (8)junction temperature: 150 °C; (9)operating ambient temperature: -65 to +150°C.

Features

PMBT2907A features: (1)High current (max. 600 mA); (2)Low voltage (max. 60 V).

Diagrams

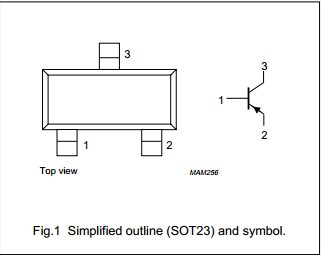

PMBT2907A simplified outline

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PMBT2907A /T3
PMBT2907A /T3

NXP Semiconductors

Transistors Bipolar (BJT) TRANS SW TAPE-11

Data Sheet

Negotiable
PMBT2907A,215
PMBT2907A,215

NXP Semiconductors

Transistors Bipolar (BJT) PNP SW 600MA 60V

Data Sheet

0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
PMBT2907A,235
PMBT2907A,235

NXP Semiconductors

Transistors Bipolar (BJT) TRANS SW TAPE-11

Data Sheet

0-1: $0.08
1-25: $0.08
25-100: $0.06
100-250: $0.03
