Product Summary

The AD8055ARZ-REEL7 is a voltage feedback amplifier which offers bandwidth and slew rate typically found in current feedback amplifiers. Additionally, the device is easy to use and available at a very low cost. Despite its low cost, it provides excellent overall performance. The applications of the AD8055ARZ-REEL7 include: Imaging, Photodiode preamps, Video line drivers, Differential line drivers, Professional cameras, Video switchers, Special effects, A-to-D drivers, Active filters.

Parametrics

AD8055ARZ-REEL7 absolute maximum ratings: (1)Supply Voltage: 13.2 V; (2)Input Voltage (Common Mode): ±VS; (3)Differential Input Voltage: ±2.5 V; (4)Output Short-Circuit Duration: Observe Power Derating Curves; (5)Storage Temperature Range N, R: -65℃ to +150℃; (6)Operating Temperature Range (A Grade): -40℃ to +125℃; (7)Lead Temperature (Soldering 10 sec): 300℃.

Features

AD8055ARZ-REEL7 features: 1)Low cost single; (2)Easy-to-use voltage feedback architecture; (3)High speed; (4)Small packaging; (5)Excellent video specifications (RL = 150 Ω, G = +2); (6)Low power, ±5 V supplies 5 mA typ/amplifier power supply current; (7)High output drive current: over 60 mA.

Diagrams

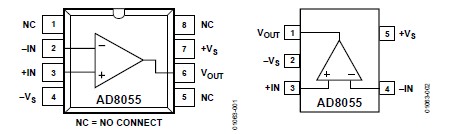

AD8055ARZ-REEL7 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8055ARZ-REEL7
AD8055ARZ-REEL7


IC OPAMP VF LDIST LN LP 8SOIC

Data Sheet

0-1000: $0.69
