Product Summary

The 25TQC33M is perfect for high voltage, low ESR and low profile applications. It is the most suitable for pass-con of the motor driver by 12V, the input of the DC to DC converter.

Parametrics

25TQC33M absolute maximum ratings: (1)Operating Temperature range(℃): -55 to +105; (2)Rated capacitance range(120Hz/20℃) (μF): 5.6 to 68; (3)Capacitance tolerance (120Hz/20℃): M:±20%; (4)Rated voltage(V.DC): 16 to 25; (5)Dissipation Factor(D.F.)(120Hz/20℃)(%): ≦10.0; (6)Leakage current (Rated voltage applied, after 5 minutes)(μA): ≦0.1CV B2size:≦0.3CV.

Features

25TQC33M features: (1)Within±20% of the initial value; (2)1.5 times the initial limit; (3)The initial limit; (4)Within+40%, -20% of the initial value; (5)1.5 times the initial limit; (6)3 times the initial limit; (7)Within±5% of the initial value; (8)The initial limit; (9)3 times the initial limit.

Diagrams

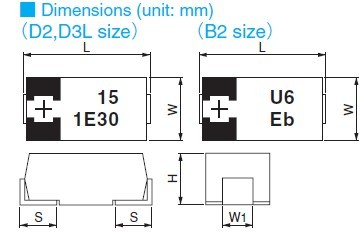

25TQC33M Dimensions
