Product Summary

The PM5324-FI is a SONET/SDH Transport Framer/Aggregator for OC-48 and OC-192. The applications of the PM5324-FI include: (1)Multi Service Provisioning Platforms(MSPP); (2)Sub Wavelength Cross Connects; (3)Add/Drop Multiplexers; (4)DWDM Platforms; (5)Channelized Routers and Multi Service Switches.

Features

PM5324-FI features: (1)General purpose 16-bit microprocessor interface for configuration, control and status monitoring; (2)Low power 1.2 V core with 2.5/3.3V I/O; (3)Standard 5-signal IEEE 1149.1 JTAG test port for boundary scan board test purposes; (4)1292-pin FCBGA package.

Diagrams

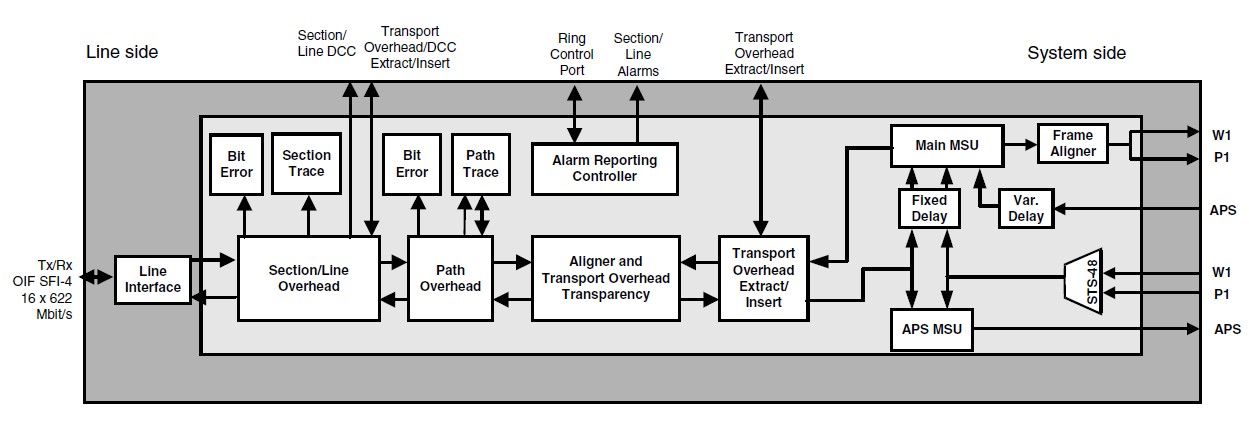

PM5324-FI block diagram
