Product Summary

The NUP4201MR6T1G is a transient voltage suppressor. It is designed to protect high speed data lines from ESD, EFT, and lighting. The typical applications of the NUP4201MR6T1G include High Speed Communication Line Protection, USB 1.1 and 2.0 Power and Data Line Protection, Digital Video Interface (DVI) and Monitors and Flat Panel Displays.

Parametrics

NUP4201MR6T1G absolute maximum ratings: (1)Peak Power Dissipation 8 x 20μS @ TA = 25℃, Ppk: 500 W; (2)Operating Junction Temperature Range, TJ: -40 to +125℃; (3)Storage Temperature Range, Tstg: -55 to +150℃; (4)Lead Solder Temperature, Maximum (10 Seconds), TL: 260℃; (5)Human Body Model (HBM), ESD: 16000V; Machine Model (MM), ESD: 400V; (6)IEC 61000.4.4 (5/50 ns), EFT: 40A.

Features

NUP4201MR6T1G features: (1)Low Clamping Voltage; (2)Stand-Off Voltage: 5 V; (3)Low Leakage; (4)TSOP-6 is footprint compatible with SC-74, SC-59 6 Lead and SOT-23 6 Lead; (5)Protection for the Following IEC Standards: IEC 61000-4-2 Level 4 ESD Protection; (6)UL Flammability Rating of 94 V-0; (7)Pb-Free Package is Available.

Diagrams

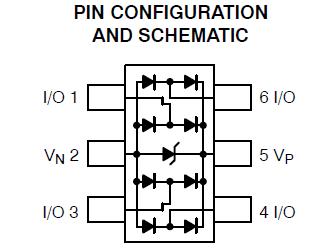

NUP4201MR6T1G pin configuration and schematic
