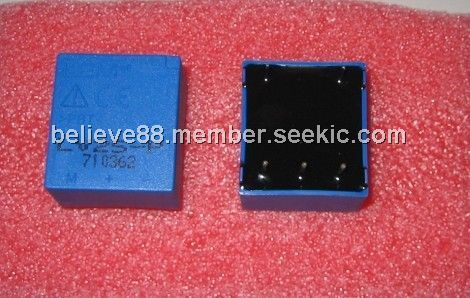

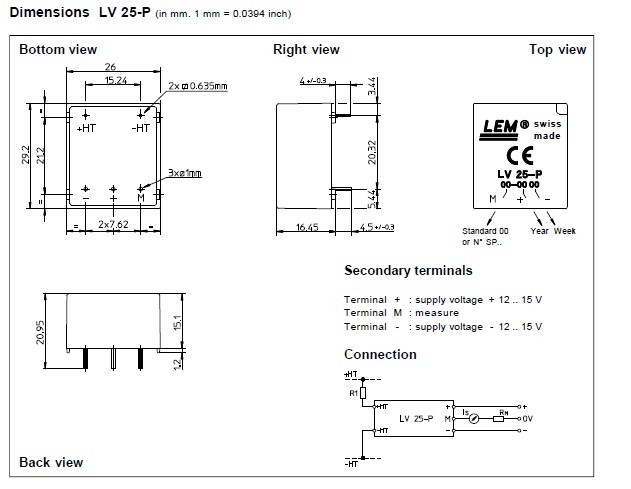

The LV25-P is a voltage transducer. It is used for the electronic measurement of voltages : DC, AC, pulsed with a galvanic isolation between the primary circuit (high voltage) and the secondary circuit (electronic circuit).
Parametrics
LV25-P absolute maximum ratings: (1)Primary nominal r.m.s. current, Ipn: 10 mA; (2)Primary current, measuring range, IP: 0 to ±14mA; (3)Measuring resistance, Rm: RM min RM max; (4)Secondary nominal r.m.s. current, ISN: 25mA; (5)Conversion ratio, Kn: 2500 : 1000; (6)Supply voltage (± 5 %), VC: ±12 to 15V; (7)Current consumption, IC: 10 (@± 15 V)+ to ISmA; (8)R.m.s. voltage for AC isolation test 1), 50 Hz, 1 mn, Vd: 2.5kV.
Features
LV25-P features: (1)Closed loop (compensated) voltage transducer using the Hall effect; (2)Insulated plastic case recognized according to UL 94-V0.
