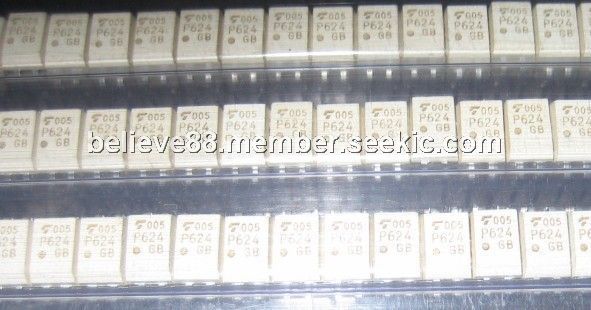

Product Summary

The TLP624-1 is a programmable controller. It consists of a gallium arsenide infrared emitting diode optically coupled to a photo-transistor. The TLP624-1 offers two isolated channels in an eight lead plastic DIP.

Parametrics

TLP624-1 absolute maximum ratings: (1)Forward current IF: 60 mA; (2)Forward current detating △IF / ℃: -0.7(Ta ≥ 39℃) mA/℃; (3)Pulse forward current IFP: 1(100μs, pulse, 100pps) A; (4)Power dissipation(1 Circuit) PD: 100 mW; (5)Power dissipation derating; (6)(Ta ≥ 25℃, 1 Circuit) △PD / ℃: -1.0 mW / ℃; (7)Reverse voltage VR: 5 V; (8)Junction temperature Tj: 125 ℃; (9)Storage temperature range Tstg: -55~125 ℃; (10)Operating temperature range Popr: -55~100 ℃; (11)Lead soldering temperature Tsol: 260(10s) ℃.

Features

TLP624-1 features: (1)Collector-emitter voltage: 55V min.; (2)Current transfer ratio; (3)Isolation voltage: 5000Vrms min.; (4)UL recognized: UL1577, file No.E67349; (5)BSI approved: BS EN60065: 2002 Certificate No.7426; BS EN60950-1: 2002 Certificate No.7427.

Diagrams

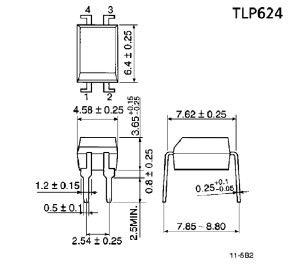

TLP624-1 dimensions
