M74HC165RM13TR

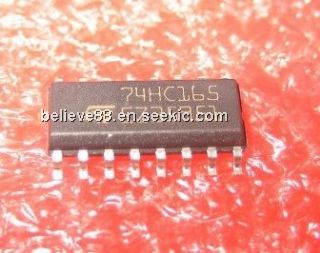

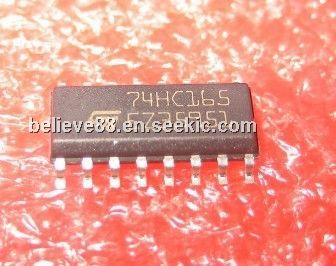

M74HC165RM13TR, SOP, 8 bit piso shift register, ± 20 mA, -0.5 to VCC + 0.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.12 / Piece
500 ~ 5000 :	0.10 / Piece

PartNumber:: M74HC165RM13TR

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 50000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. JASON LU's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-01

From Other Seller

Part Number:M74HC165RM13TR
US $0.10 - 0.12
Quantity:

piece

Product Summary

The M74HC165RM13TR is a high speed CMOS 8 bit piso shift register fabricated with silicon gate C2 MOS technology. This device contains eight clocked master slave RS flip-flops connected as a shift register, with auxiliary gating to provide over-riding asynchronous parallel entry. Parallel data enters when the shift/load input is low. The parallel data can change while shift/load is low, provided that the recommended set-up and hold times are observed. For clocked operation, shift/load must be high. The two clock input perform identically; one can be used as a clock inhibit by applying a high signal; to permit this operation clocking is accomplished through a 2 input nor gate.

Parametrics

M74HC165RM13TR absolute maximum ratings: (1)supply voltage: -0.5 to +7 V; (2)DC input voltage: -0.5 to VCC + 0.5 V; (3)DC output voltage: -0.5 to VCC + 0.5 V; (4)DC input diode current: ± 20 mA; (5)DC output diode current: ± 20 mA; (6)DC output current: ± 25 mA; (7)DC VCC or ground current: ± 50 mA; (8)power dissipation: 500(*) mW; (9)storage temperature: -65 to +150°C; (10)lead temperature (10 sec): 300°C.
