Product Summary
The LTC1451CS8 is a complete single supply, rail-to-rail voltage output 12-bit digital-to-analog converters (DACs) in an SO-8 package. It include an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface. The LTC1451CS8 has an onboard reference of 2.048V and a full-scale output of 4.095V. It operates from a single 4.5V to 5.5V supply.
Parametrics
LTC1451CS8 absolute maximum ratings: (1)VCC to GND: –0.5V to 7.5V; (2)TTL input voltage: –0.5V to 7.5V; (3)REF: –0.5V to VCC + 0.5V; (4)maximum junction temperature: –65°C to 125°C; (5)storage temperature range: – 65°C to 150°C; (6)lead temperature (soldering, 10 sec): 300°C.
Features
LTC1451CS8 features: (1)12-bit resolution; (2)buffered true rail-to-rail voltage output; (3)3V operation, ICC: 250μA Typ; (4)5V operation (LTC1451), ICC: 400μA typ; (5)multiplying version; (6)power-on reset; (7)sO-8 package; (8)3-wire cascadable serial interface; (9)maximum DNL error: 0.5LSB.

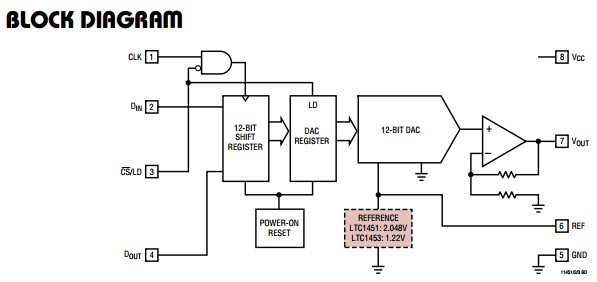

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1451CS8 |
|
IC D/A CONV 12BIT R-R 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1451CS8#PBF |
|
IC D/A CONV 12BIT R-R 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1451CS8#TR |
|
IC DAC 12BIT R-R SINGLE 5V 8SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1451CS8#TRPBF |
|
IC D/A CONV 12BIT R-R 8-SOIC |
Data Sheet |
|
|
||||||||||
