Product Summary
The LT3507EUHF is a triple, current mode, DC/DC converter with internal power switches and a low dropout regulator. The switching converters are step-down converters capable of generating one 2.4A output and two 1.5A outputs. All three converters are synchronized to a single oscillator. The 2.4A output runs with opposite phase to the other two converters, reducing input ripple current. Each regulator has independent shutdown and soft-start circuits, and generates a power good signal when its output is in regulation, easing power supply sequencing and interfacing with microcontrollers and DSPs.
Parametrics
LT3507EUHF absolute maximum ratings: (1)BOOST Pins: 55V; (2)BOOST Above SW: 25V; (3)PGOOD Pins: 36V; (4)BIAS Pin: 16V; (5)DRIVE Pin: 5V; (6)Storage Temperature Range: –65°C to 150°C.
Features
LT3507EUHF features: (1)wide input rnge: 4V to 36V; (2)one 2.4A and two 1.5A output switching ; (3)regulators with internal power switches; (4)low dropout linear regulator with external transistor; (5)antiphase switching reduces ripple; (6)independent run, tracking/soft-start, and power ; (7)good indicators ease supply sequencing; (8)uses small inductors and ceramic capacitors; (9)adjustable, 250kHz to 2.5MHz switching frequency; (10)synchronizable over the full range; (11)user programmable overvoltage and undervoltage lockouts; (12)thermally enhanced, 38-Lead 5mm × 7mm QFN package.

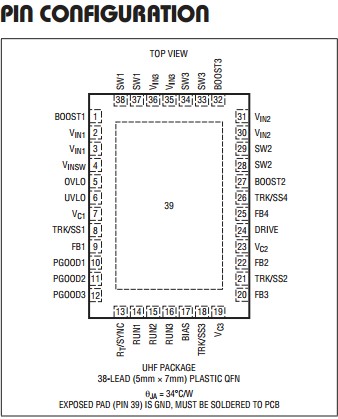

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT3507EUHF#PBF |
|
IC REG QD BUCK/LINEAR 38-QFN |
Data Sheet |
|
|
||||||||||
|
LT3507EUHF#TRPBF |
|
IC REG QD BUCK/LINEAR 38-QFN |
Data Sheet |
|
|
||||||||||
