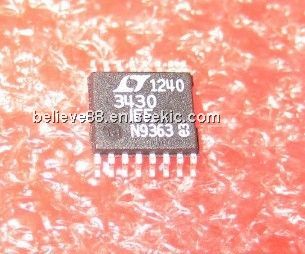

Product Summary
The LT3430IFE is a 200kHz monolithic buck switching regulator that accepts input voltages up to 60V. A high efficiency 3A, 0.1 Ω switch is included on the die along with all the necessary oscillator, control and logic circuitry. A current mode provides fast transient response and excellent loop stability.
Parametrics
LT3430IFE absolute maximum ratings: (1)Input Voltage (VIN): 60V; (2)BOOST Pin Above SW: 35V; (3)BOOST Pin Voltage: 68V; (4)SHDN Voltage: 6V; (5)BIAS Pin Voltage: 30V; (6)FB Pin Voltage/Current: 3.5V/2mA; (7)Storage Temperature Range: –65°C to 150°C; (8)Lead Temperature (Soldering, 10 sec): 300°C.
Features
LT3430IFE features: (1)wide input range: 5.5V to 60V; (2)3A peak switch current; (3)small thermally enhanced 16-Pin TSSOP package; (4)constant 200kHz switching frequency; (5)saturating switch design: 0.1Ω; (6)peak switch current maintained over; (7)full duty cycle range; (8)effective supply current: 2.5mA; (9)shutdown current: 30μA; (10)1.2V feedback reference voltage; (11)easily synchronizable; (12)cycle-by-cycle current limiting.

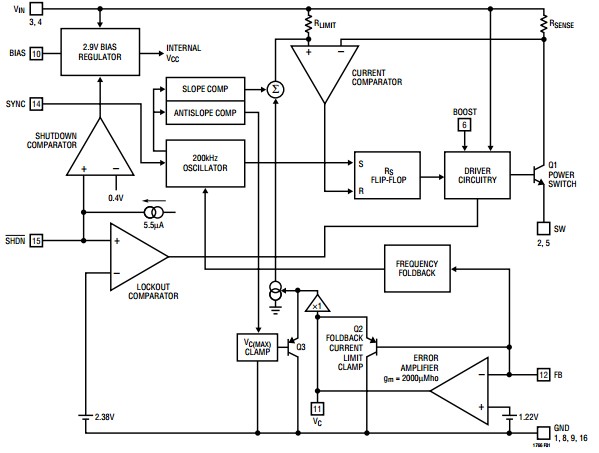

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT3430IFE |
|
IC REG BUCK ADJ 3A 16TSSOP |
Data Sheet |
|
|
||||||||||
|
LT3430IFE#PBF |
|
IC REG BUCK ADJ 3A 16TSSOP |
Data Sheet |
|
|
||||||||||
|
LT3430IFE-1#PBF |
|
IC REG BUCK ADJ 3A 16TSSOP |
Data Sheet |
|
|
||||||||||
|
LT3430IFE-1#TRPBF |
|
IC REG BUCK ADJ 3A 16TSSOP |
Data Sheet |
|
|
||||||||||
|
LT3430IFE#TR |
|
IC REG BUCK ADJ 3A 16TSSOP |
Data Sheet |
|
|
||||||||||
|
LT3430IFE#TRPBF |
|
IC REG BUCK ADJ 3A 16TSSOP |
Data Sheet |
|
|
||||||||||
