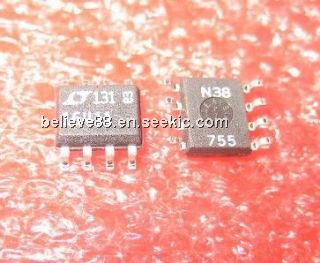

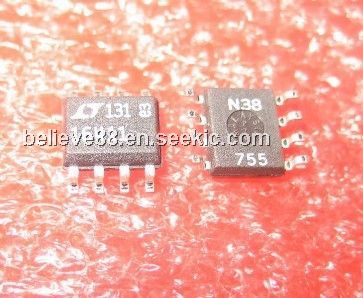

LT1641-1CS8

LT1641-1CS8, positive high voltage hot swap controllers, SOP, –0.3V to 44V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.90~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	2.00 / Piece
600 ~ 2000 :	1.90 / Piece

PartNumber:: LT1641-1CS8

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. JASON LU's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-01

From Other Seller

Part Number:LT1641-1CS8
US $1.90 - 2.00
Quantity:

piece

Product Summary

The LT1641-1CS8 is an 8-pin Hot SwapTM controller that allows a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, the board supply voltage can be ramped up at a programmable rate. A high side switch driver controls an N-channel gate for supply voltages ranging from 9V to 80V. The chips feature a programmable analog foldback current limit circuit. If the chips remain in current limit for more than a programmable time, the N-channel pass transistor is either latched off LT1641-1CS8 or is set to automatically restart after a time-out delay.

Parametrics

LT1641-1CS8 absolute maximum ratings:(1)Supply Voltage (VCC): –0.3V to 100V; (2)Input Voltage (SENSE): –0.3V to 100V; (3)Input Voltage (TIMER): –0.3V to 44V; (4)Input Voltage (FB, ON): –0.3V to 60V; (5)Output Voltage (PWRGD): –0.3V to 100V; (6)Output Voltage (GATE): –0.3V to 100V; (7)Storage Temperature Range: –65°C to 150°C; (8)Lead Temperature (Soldering, 10 sec): 300°C.

Features

LT1641-1CS8 features: (1)Allows Safe Board Insertion and Removal from a Live Backplane; (2)Controls Supply Voltage from 9V to 80V; (3)Programmable Analog Foldback Current Limiting; (4)High Side Drive for an External N-Channel; (5)Latched Operation Mode (LT1641-1); (6)Automatic Retry (LT1641-2); (7)User Programmable Supply Voltage Power-Up Rate; (8)Undervoltage Lockout; (9)Overvoltage Protection; (10)Both are available in 8-Lead SO Package.
