DS90LV032ATMTCX

quad CMOS differential line receiver, -0.3V to +4V, Low Power design, high impedance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~1.20

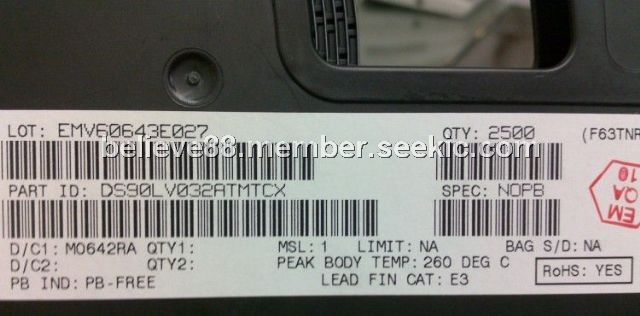

PartNumber:: DS90LV032ATMTCX

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. JASON LU's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-04

From Other Seller

Part Number:DS90LV032ATMTCX
US $1.10 - 1.20
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DS90LV032ATMTCX is a quad CMOS differential line receiver designed for applications requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The DS90LV032ATMTCX accepts low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels. The receiver supports a TRI-STATE function that may be used to multiplex outputs. The DS90LV032ATMTCX also supports open, shorted and terminated (100W) input Fail-safe. The receiver output will be HIGH for all fail-safe conditions.

Parametrics

DS90LV032ATMTCX absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)Input Voltage (RIN+, RIN-): -0.3V to +3.9V; (3)Enable Input Voltage (EN, EN*): -0.3V to (VCC + 0.3V); (4)Output Voltage (ROUT): -0.3V to (VCC + 0.3V); (5)Maximum Package Power Dissipation +25℃: M Package: 1025 mW; MTC Package: 866 mW; Derate M Package: 8.2 mW/℃ above +25℃; Derate MTC Package: 6.9 mW/℃ above +25℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Lead Temperature Range (Soldering 4 sec.): +260℃; (8)Maximum Junction Temperature: +150℃; (9)ESD Rating(HBM 1.5 kΩ, 100 pF): ≥4.5 kV; (EIAJ 0 Ω, 200 pF): ≥250 V.

Features

DS90LV032ATMTCX features: (1)>400 Mbps (200 MHz) switching rates; (2)0.1 ns channel-to-channel skew (typical); (3)0.1 ns differential skew (typical); (4)3.3 ns maximum propagation delay; (5)3.3V power supply design; (6)Power down high impedance on LVDS inputs; (7)Low Power design (40mW 3.3V static); (8)Interoperable with existing 5V LVDS networks; (9)Accepts small swing (350 mV typical) VID; (10)Supports open, short and terminated input fail-safe; (11)Compatible with ANSI/TIA/EIA-644; (12)Industrial temp. operating range (-40℃ to +85℃); (13)Available in SOIC and TSSOP Packaging.
