Product Summary

The ADG509AKNZ are CMOS monolithic analog multiplexers with eight channels and dual four channels, respectively. The ADG509AKNZ switches one of four differential inputs to a common differential output, depending on the state of two binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.

Parametrics

ADG509AKNZ absolute maximum ratings: (1)VDD to VSS: 44 V ; (2)VDD to GND: 32 V ; (3)VSS to GND: –32 V; (4)Continuous Current, S or D: 20 mA; (5)Operating Temperature Commercial (K Version) :-40°C to +85°C ; (6)Storage Temperature Range: -65°C to +150°C.

Features

ADG509AKNZ features: (1)44 V supply maximum rating ; (2)VSS to VDD analog signal range ; (3)Single-/dual-supply specifications ; (4)Wide supply range: 10.8 V to 16.5 V ; (5)Extended plastic temperature range: -40°Cto +85°C; (6)Low power dissipation: 28 mW maximum ; (7)Low leakage: 20 pA typical ; (8)Available in 16-lead DIP/SOIC and 20-lead PLCC/LCC packages ; (9)Superior alternative to DG508A, HI-508, DG509A, HI-509.

Diagrams

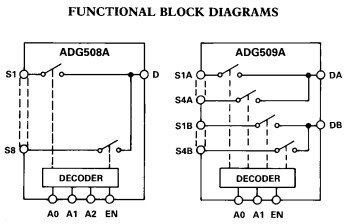

ADG509AKNZ functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

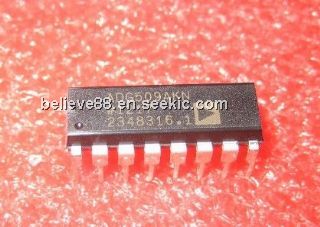

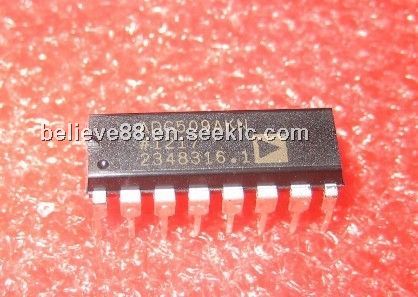

ADG509AKNZ
ADG509AKNZ

IC MULTIPLEXER DUAL 4X1 16DIP
Data Sheet
0-1: $3.40
1-25: $2.73
25-100: $2.49
100-250: $2.25
250-500: $2.02
500-1000: $1.70
1000-2500: $1.62
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG506A
ADG506A
Other

Data Sheet
Negotiable
ADG506ABQ
ADG506ABQ

IC MULTIPLEXER 16X1 28CDIP
Data Sheet
0-1: $15.86
ADG506AKN
ADG506AKN

IC MULTIPLEXER 16X1 28DIP
Data Sheet
0-26: $6.66
ADG506AKNZ
ADG506AKNZ

IC MULTIPLEXER 16X1 28DIP
Data Sheet
0-1: $6.85
1-10: $6.23
10-100: $5.30
100-250: $4.83
250-500: $4.52
500-1000: $4.15
ADG506AKP
ADG506AKP

IC MULTIPLEXER 16X1 28PLCC
Data Sheet
0-39: $7.48
ADG506AKP PLCC28
ADG506AKP PLCC28
Other

Data Sheet
Negotiable
