Product Summary

The 6N136SD optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventionalphototransistor optocouplers by reducing the base-collector capacitance of the input transistor.

Parametrics

6N136SD absolute maximum ratings: (1)Storage Temperature: -55 to +125°C; (2)Operating Temperature: -55 to +100°C; (3)DC/Average Forward Input Current: 25 mA; (4)Peak Forward Input Current (50% duty cycle, 1 ms P.W.): 50 mA; (5)Average Output Current: 8 mA; (6)Peak Output Current: 16 mA; (7)Emitter-Base Reverse Voltage: 5 V; (8)Supply Voltage: -0.5 to 30 V; (9)Base Current: 5 mA.

Features

6N136SD features: (1)High speed-1 MBit/s; (2)Superior CMR-10 kV/μs; (3)Dual-Channel HCPL-2530/HCPL-2531; (4)Double working voltage-480V RMS; (5)CTR guaranteed 0-70°C; (6)U.L. recognized (File # E90700).

Diagrams

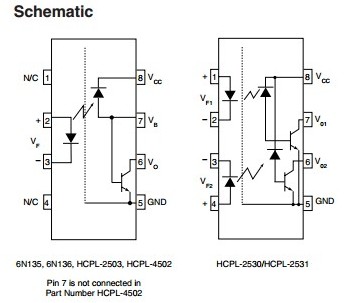

6N136SD schematic diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

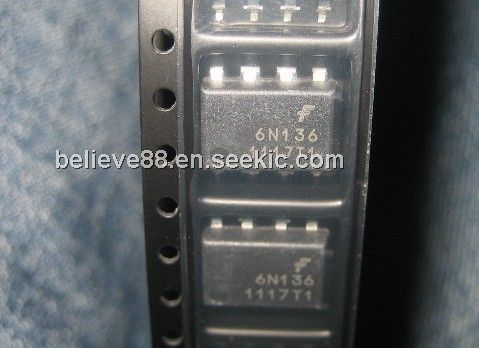

6N136SD
6N136SD
Fairchild Semiconductor
High Speed Optocouplers 1Mbit/s 1Ch Optocoup Transistor Hi Speed
Data Sheet
0-1: $0.76
1-25: $0.67
25-100: $0.62
100-250: $0.53
6N136SDM
6N136SDM
Fairchild Semiconductor
High Speed Optocouplers HI-SPEED SM LEAD BEND
Data Sheet
0-1: $0.81
1-10: $0.72
10-100: $0.58
100-250: $0.50
6N136SDV
6N136SDV
Fairchild Semiconductor
High Speed Optocouplers 1Mbit/s 1Ch Optocoup Transistor Hi Speed
Data Sheet
0-1: $0.86
1-25: $0.67
25-100: $0.62
100-250: $0.53
