Product Summary

The 593D157X96R3D2TE3 is a Solid Tantalum Surface Mount Capacitor.

Parametrics

593D157X96R3D2TE3 specifications: (1)Operating Temperature: - 55 ℃ to + 85 ℃(to + 125 ℃ with voltage derating); (2)Capacitance Range: 0.47 μF to 680 μF; (3)Capacitance Tolerance: ± 5 %, ± 10 %, ± 20 %; (4)100 % Surge Current Tested (B, C, D and E Case Sizes); (5)Voltage Rating: 4 VDC to 50 VDC.

Features

593D157X96R3D2TE3 features: (1)Terminations: 100 % matte tin, standard, tin/lead available; (2)Compliant terminations; (3)Molded case available in five case codes; (4)Compatible with high Volume automatic pick and place equipment; (5)High ripple current carrying capability; (6)Low ESR; (7)Meets IEC specification QC300801/US0001 and EIA535BAAC mechanical and performance requirements; (8)Compliant to RoHS Directive 2002/95/EC; (9)Moisture sensitivity level 1.

Diagrams

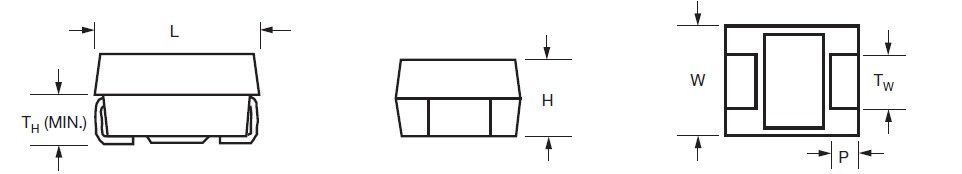

593D157X96R3D2TE3 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
593D157X96R3D2TE3
593D157X96R3D2TE3

CAP TANT 150UF 6.3V 10% 2917
Data Sheet
0-500: $0.35
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
593D
593D
Other

Data Sheet
Negotiable
593D105X0035A2TE3
593D105X0035A2TE3
Vishay/Sprague
Tantalum Capacitors - Solid SMD 1uF 35volts 20% A case Molded
Data Sheet
0-1: $0.22
1-10: $0.20
10-50: $0.18
50-100: $0.17
593D106X9016A2TE3
593D106X9016A2TE3
Vishay/Sprague
Tantalum Capacitors - Solid SMD 10uF 16volts 10% A case Molded
Data Sheet
0-1: $0.22
1-10: $0.20
10-50: $0.18
50-100: $0.17
593D106X9010A2TE3
593D106X9010A2TE3
Vishay/Sprague
Tantalum Capacitors - Solid SMD 10uF 10volts 10% A case Molded
Data Sheet
0-1: $0.22
1-10: $0.20
10-50: $0.18
50-100: $0.17
593D106X0025C2TE3
593D106X0025C2TE3
Vishay/Sprague
Tantalum Capacitors - Solid SMD 10uF 25volts 20% C case Molded
Data Sheet
0-1: $0.66
1-10: $0.55
10-50: $0.51
50-100: $0.40
593D106X9010A2T
593D106X9010A2T
Vishay/Sprague
Tantalum Capacitors - Solid SMD 10uF 10volts 10% A case Molded
Data Sheet
Negotiable
