Product Summary

The 52976-2472 is a connector.

Parametrics

52976-2472 absolute maximum ratings: (1)Pitch: 0.5 mm; (2)Number of Positions / Contacts: 24; (3)Mounting Angle: Right; (4)Mounting Style: SMD/SMT; (5)Housing Material: Thermoplastic, High Temperature; (6)Contact Material: Phosphor Bronze; (7)Contact Plating: Tin Bismuth; (8)Voltage Rating: 50 V; (9)Current Rating: 0.4 A; (10)Contact Location: Bottom Contact.

Diagrams

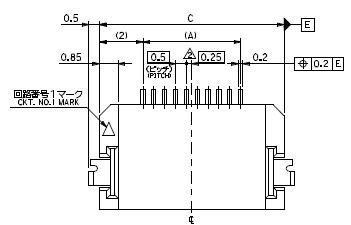

52976-2472 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
52976-2472
52976-2472
Molex
FFC / FPC Connectors 0.5FFC/FPCNonZIFSMTH sgAssy24CktEmbsTpPkg
Data Sheet
0-2230: $0.40
