Product Summary
The TLV5610IPWRG4 is an 8-channel, 12-/10-/8-bit, 2.7-V TO 5.5-V low power digital-to analog converter. The TLV5610IPWRG4 is pin-compatible, eight-channel, 12-/10-/8-bit voltage output DACseach with a flexible serial interface. The serial interface allows glueless interface to TMS320 and SPI, QSPI, and Microwire serial ports. It is programmed with a 16-bit serial string containing 4 control and 12 data bits. Additional features are a power-down mode, an LDAC input for simultaneous update of all eight DAC outputs, and a data output which can be used to cascade multiple devices.
Parametrics
TLV5610IPWRG4 absolute maximum ratings: (1)Supply voltage (AVDD, DVDD to GND): 7 V; (2)Reference input voltage: - 0.3 V to AVDD + 0.3 V; (3)Digital input voltage range: - 0.3 V to DVDD + 0.3 V; (4)Operating free-air temperature range, TA: -40°C to 85°C; (5)Storage temperature range, Tstg: -65°C to 150°C; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260°C.
Features
TLV5610IPWRG4 features: (1)Eight Voltage Output DACs in One Package: TLV5610-12-Bit; (2)Programmable Settling Time vs Power Consumption: – 1 μs In Fast Mode/– 3 μs In Slow Mode; (3)Compatible With TMS320 and SPI(TM) SerialPorts; (4)Monotonic Over Temperature; (5)Low Power Consumption: – 18 mW In Slow Mode at 3-V; (6)Reference Input Buffers; (7)Power-Down Mode; (8)Buffered, High Impedance Reference Inputs; (9)Data Output for Daisy-Chaining.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

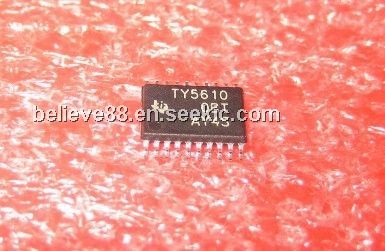

TLV5610IPWRG4 |
Texas Instruments |
DAC (D/A Converters) 2.7V to 5.5V 12-Bit 8-Ch Ser |
Data Sheet |
|
|
|||||||||||||||||||
