Product Summary

The TL500CJ is a digitla processor. It provides the basic functions for a dual-slope-integrating analog-to-digital converter. The device contains the necessary analog switches and decoding circuits, reference voltage generator, buffer, integrator, and comparator.

Parametrics

TL500CJ absolute maximum ratings: 1)positive supply voltage, VCC: 18V; (2)negative supply voltage, VCC-: -18V; (3)input voltage, Vi: ±VCC; (4)comparator output voltage range: 0 to VCC+; (5)comparator output sink current: 20mA; (6)buffer, reference, or integrator output source current: ; (7)operating free-air temperature range: -40 to 85℃; (8)storage temperature range: -65 to 150℃; (9)lead temperature: 260℃.

Features

TL500CJ features: (1)true differential inputs; (2)automatic zero; (3)automatic polarity; (4)high input impedance: 109Ohms typically.

Diagrams

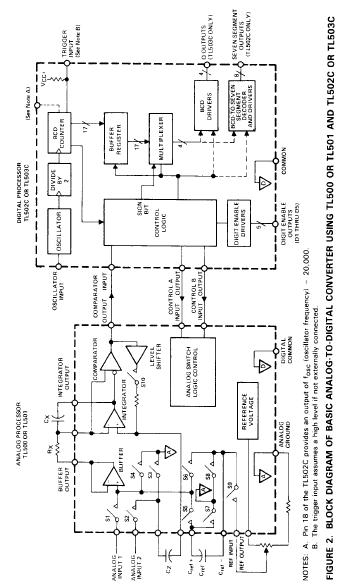

TL500CJ block diagram
