Product Summary
The TL072CDR is a JFET-input operational amplifier with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL072CDR ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip. The TL072CDR is characterized for operation from 0℃ to 70℃.
Parametrics
TL072CDR absolute maximum ratings: (1)Supply voltage: VCC+: 18 V; VCC-: -18 V; (2)Differential input voltage, VID: ±30 V; (3)Input voltage, VI: ±15 V; (4)Duration of output short circuit: Unlimited; (5)Package thermal impedance, θJA: 97℃/W; (6)Operating virtual junction temperature, TJ: 150℃; (7)Case temperature for 60 seconds: 260℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃; (9)Storage temperature range, Tstg: -65 to 150℃.
Features
TL072CDR features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion: 0.003% Typ; (6)Low Noise Vn = 18 nV/Hz Typ at f = 1 kHz; (7)High Input Impedance: JFET Input Stage; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate: 13 V/μs Typ; (11)Common-Mode Input Voltage Range Includes VCC+.

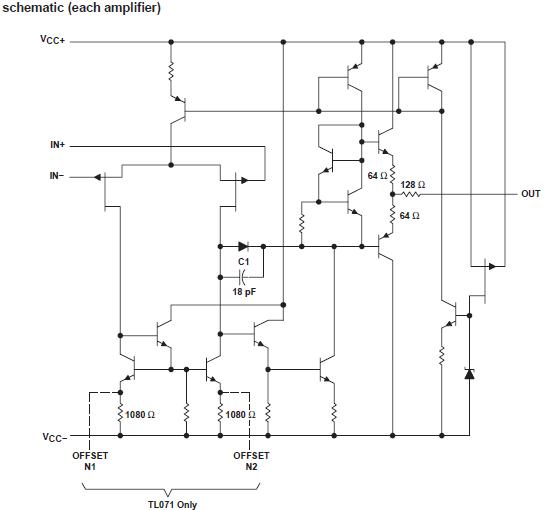

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL072CDR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual JFET Op Amp |
Data Sheet |
|
|
||||||||||||
|
TL072CDRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Low-Noise JFET-Input |
Data Sheet |
|
|
||||||||||||
|
TL072CDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Low-Noise JFET-Input |
Data Sheet |
|
|
||||||||||||
