Product Summary

The TAJC156K035RNJ is a Standard Tantalum.

Parametrics

TAJC156K035RNJ absolute maximum ratings: (1)Capacitance Range: 0.10 μF to 2200 μF; (2)Capacitance Tolerance: ±10%; ±20%; (3)Rated Voltage (VR) ≤ +85℃: 2.5; (4)Category Voltage (VC) ≤ +125℃: 1.7; (5)Surge Voltage (VS) ≤ +85℃: 3.3; (6)Surge Voltage (VS) ≤ +125℃: 2.2; (7)Temperature Range: -55 to +125℃; (8)Reliability: 1% per 1000 hours at 85℃, VR with 0.1Ω/V series impedance, 60% confidence level; (9)Qualification: CECC 30801 - 005 issue 2 EIA 535BAAC; (10)Termination Finished: Sn Plating (standard), Gold and SnPb Plating upon request.

Features

TAJC156K035RNJ features: (1)General purpose SMT chip tantalum series; (2)6 case sizes available; (3)Low profile options available; (4)CV range: 0.10-2200μF / 2.5-50V.

Diagrams

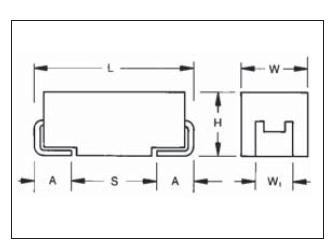

TAJC156K035RNJ dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

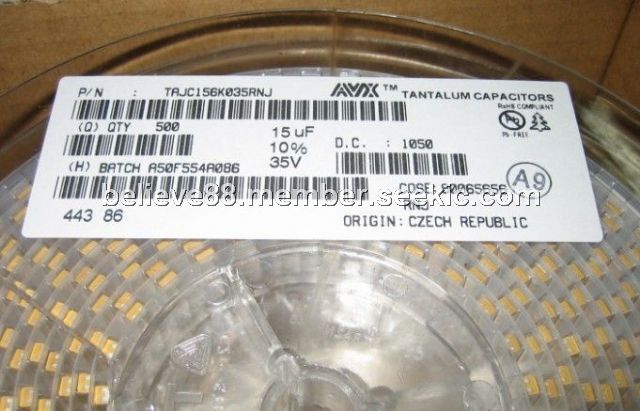

TAJC156K035RNJ
TAJC156K035RNJ
AVX
Tantalum Capacitors - Solid SMD 35volts 15uF 10%
Data Sheet
0-1: $0.68
1-100: $0.47
100-200: $0.41
200-500: $0.28
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TAJC105K050H
TAJC105K050H
AVX
Tantalum Capacitors - Solid SMD 50volts 1uF 10%
Data Sheet
Negotiable
TAJC105K050HNJ
TAJC105K050HNJ
AVX
Tantalum Capacitors - Solid SMD 50volts 1uF 10%
Data Sheet
0-1: $1.97
1-100: $1.37
100-500: $0.88
500-1000: $0.80
TAJC105K050PNJ
TAJC105K050PNJ
AVX
Tantalum Capacitors - Solid SMD 50volts 1.0uF 10%
Data Sheet
0-3000: $0.16
3000-6000: $0.15
6000-9000: $0.14
9000-12000: $0.14
TAJC105K050RNJ
TAJC105K050RNJ
AVX
Tantalum Capacitors - Solid SMD 50volts 1uF 10%
Data Sheet
0-1: $0.60
1-100: $0.33
100-200: $0.28
200-500: $0.19
TAJC105K050SNJ
TAJC105K050SNJ
AVX
Tantalum Capacitors - Solid SMD 50volts 1.0uF 10%
Data Sheet
0-3000: $0.16
3000-6000: $0.15
6000-12000: $0.14
12000-27000: $0.14
TAJC105M050H
TAJC105M050H
AVX
Tantalum Capacitors - Solid SMD 50volts 1uF 20%
Data Sheet
Negotiable
