Product Summary

The SMB8J28CA-E3 is a high power density surface mount TRANSZORB transient voltage suppressor. The SMB8J28CA-E3 can be used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.

Parametrics

SMB8J28CA-E3 absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000 μs waveform PPPM uni-directional: 1000 W; bi-directional: 800 W; (2)Peak forward surge current 8.3 ms single half sine-wave uni-directional only IFSM: 100 A; (3)Operating junction and storage temperature range TJ, TSTG: - 55 to + 150 ℃.

Features

SMB8J28CA-E3 features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Available in uni-directional and bi-directional; (5)Excellent clamping capability; (6)Very fast response time; (7)Low incremental surge resistance; (8)Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃; (9)Solder dip 260 ℃, 40 s; (10)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

Diagrams

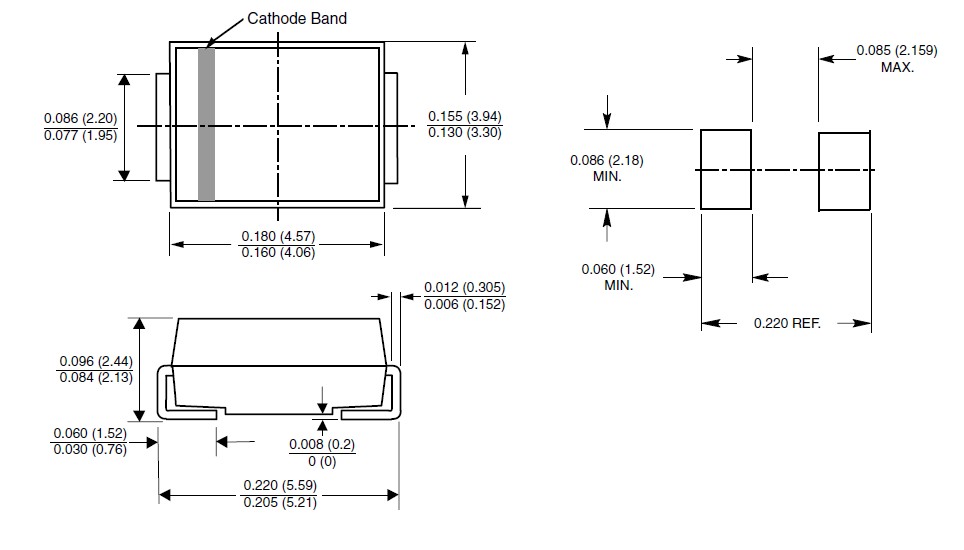

SMB8J28CA-E3 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SMB8J28CA-E3/2C
SMB8J28CA-E3/2C
Vishay Semiconductors
TVS Diodes - Transient Voltage Suppressors 800W 28V 5% Bidir
Data Sheet
Negotiable
SMB8J28CA-E3/51
SMB8J28CA-E3/51
Vishay Semiconductors
TVS Diodes - Transient Voltage Suppressors 800W 28V 5% Bidir
Data Sheet
Negotiable
SMB8J28CA-E3/5B
SMB8J28CA-E3/5B
Vishay Semiconductors
TVS Diodes - Transient Voltage Suppressors 800W 28V 5% Bidir
Data Sheet
0-1: $0.31
1-10: $0.29
10-25: $0.27
25-100: $0.25

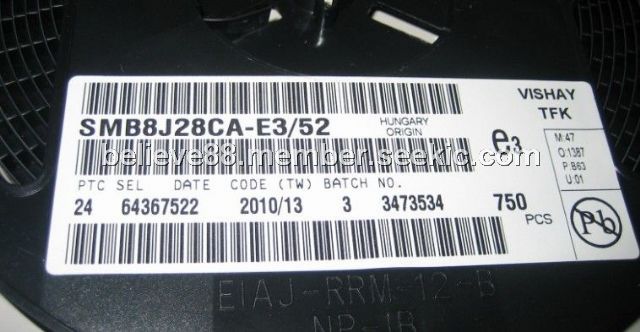

SMB8J28CA-E3/52
SMB8J28CA-E3/52
Vishay Semiconductors
TVS Diodes - Transient Voltage Suppressors 800W 28V 5% Bidir
Data Sheet
0-1: $0.31
1-10: $0.29
10-50: $0.27
50-100: $0.25
100-750: $0.21
SMB8J28CA-E3/55
SMB8J28CA-E3/55
Vishay Semiconductors
TVS Diodes - Transient Voltage Suppressors 800W 28V 5% Bidir
Data Sheet
Negotiable
