Product Summary
The SKIIP35NAB126V1 is a 3-phase bridge rectifier, brake chopper and 3-phase bridge inverter. Applications include: invertr up to 28kV/A, typical motor power 15kW.
Parametrics
SKIIP35NAB126V1 absolute maximum ratings: (1)VCES: 1200V; (2)On the conditions of Ta=25(70)℃, IC: 73(55)A; (3)On the conditions of tp≤1ms,ICRM: 100A; (4)VGES: ±20V; (5)Tj: -40~+150℃; (6)VRRM: 1600V; (7)On the conditions of Ts=70℃, IF: 61A; (8)On the conditions of tp=10ms, sin 180°, Tj=25℃, IFSM: 700A; (9)On the conditions of tp=10ms, sin 180°, Tj=25℃, i2t: 2400A2s.
Features
SKIIP35NAB126V1 features: (1)Fast trench IGBTs; (2)Robust and soft freewheeling diodes in CAL technology; (3)Highly reliable spring contacts for electrical connections; (4)UL recognised file no.E63532.

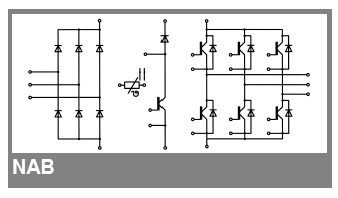

Diagrams
 |
