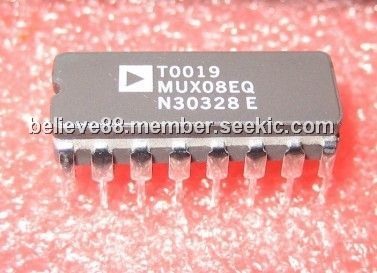

MUX08EQ

monolithic eight-channel analog multiplexer, 36V, 25mA, Low on resistance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.90~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.90~3.20

PartNumber:: MUX08EQ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. JASON LU's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-04

From Other Seller

Part Number:MUX08EQ
US $2.90 - 3.20
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

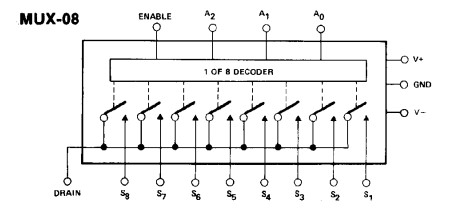

The MUX08EQ is a monolithic eight-channel analog multiplexer which connects a single output to one of the eight analog inputs depending upon the state of a 3-bit binary address. It is turned off by applying logic 0 to the enable pin, thereby providing a package select function. The MUX08EQ offers low, constant on resistance, low leakage currents and fast setting time with low crosstalk to satisfy a wide variety of applications.

Parametrics

MUX08EQ absolute maximum ratings: (1)Operating temperature range: -55℃ to +125℃; (2)Junction temperature(Tj): -65℃ to +150℃; (3)Storage temperature range: -65℃ to +150℃; P-suffix: -60℃ to +125℃; (4)Lead temperature(soldering, 60 sec): 300℃; (5)Maximum junction temperature: 150℃; (6)V+ supply to V- supply: 36V; (7)Logic input voltage: (-4V or V-) to V+ supply; (8)Analog input voltage: V- supply -20V to V+ supply +20V; (9)Maximum current through any pin: 25mA.

Features

MUX08EQ features: (1)JFET switches rather than CMOS; (2)Low on resistance: 220Ω typ; (3)Highly resistant to static discharge damage; (4)No SCR latch-up problems; (5)Digital inputs compatible with TTL and CMOS; (6)125℃ temperature tested dice available; (7)Available in surface mount package; (8)Available in die form.
