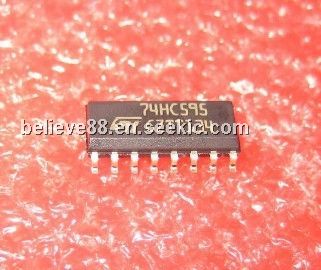

M74HC595RM13TR

M74HC595RM13TR, SOP, 8 bit shift register, ± 25 mA, -0.5 to VCC + 0.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.06~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.10 / Piece
1000 ~ 5000 :	0.06 / Piece

PartNumber:: M74HC595RM13TR

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 50000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. JASON LU's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-01

From Other Seller

Part Number:M74HC595RM13TR
US $0.06 - 0.10
Quantity:

piece

Product Summary

The M74HC595RM13TR is a high speed CMOS 8-bit shift register/output latches (3-state) fabricated in silicon C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. The M74HC595RM13TR contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has 8 3-STATE outputs. Separate clocks are provided for both the shift register and the storage register.

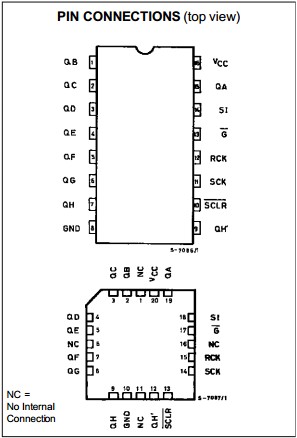

Parametrics

M74HC595RM13TR absolute maximum ratings: (1)supply voltage: -0.5 to +7 V; (2)DC input voltage: -0.5 to VCC + 0.5 V; (3)DC output voltage: -0.5 to VCC + 0.5 V; (4)DC input diode current: ± 20 mA; (5)DC output diode current: ± 20 mA; (6)DC Output Current Per Output Pin QA-QH: ± 35 mA ; (7)DC Output Current Per Output Pin QH: ± 25 mA; (8)D DC VCC or Ground Current: ± 70 mA; (9)power dissipation: 500(*) mW; (10)storage temperature: -65 to +150°C; (11)lead temperature (10 sec): 300°C.

Features

M74HC595RM13TR features: (1)high speed fmax = 55 MHz (TYP.) AT VCC = 5 V; (2)low power dissipation ICC = 4 μA (max.) AT TA = 25 °C; (3)high noise immunity VNIH = VNIL = 28 % VCC (MIN.); (4)output drive capability: 15 LSTTL loads for QA TO QH, 10 LSTTL loads for QH; (5)symmetrical output impedance; (6)balanced propagation delays tPLH = tPHL; (7)wide operating voltage range VCC (OPR) = 2 V TO 6 V; (8)pin and function compatible with LSTTL 74LS595.
