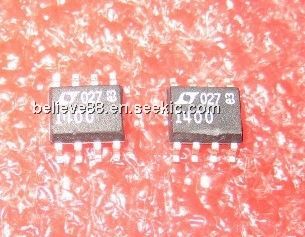

LTC1400CS8

LTC1400CS8, complete SO-8, 12-Bit, 400ksps ADC, SOP, 500mW, 12V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.20~4.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 200 :	4.50 / Piece
300 ~ 1000 :	4.20 / Piece

PartNumber:: LTC1400CS8

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. JASON LU's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-01

From Other Seller

Part Number:LTC1400CS8
US $4.20 - 4.50
Quantity:

piece

Product Summary

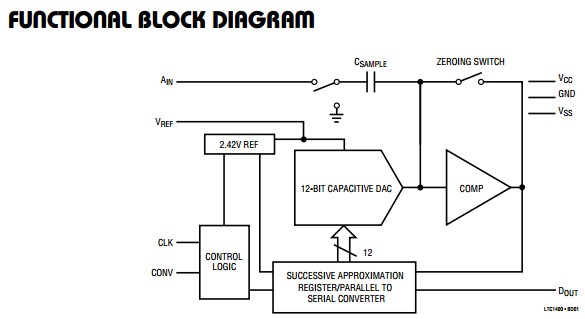

The LTC1400CS8 is a complete 400ksps, 12-bit A/D converter which draws only 75mW from a 5V or ± 5V supplies.This easy-to-use device comes complete with a 200ns sample-and-hold and a precision reference. Unipolar and bipolar conversion modes add to the flexibility of the ADC. The LTC1400 has two power saving modes: Nap and Sleep. In Nap mode, it consumes only 6mW of power and can wake up and convert immediately. In the Sleep mode, it consumes 30μW of power typically. Upon power-up from Sleep mode, a reference ready (REFRDY) signal is available in the serial data word to indicate that the reference has settled and the chip is ready to convert.

Parametrics

LTC1400CS8 absolute maximum ratings: (1)supply voltage (VCC): 7V; (2)negative supply voltage (VSS): – 6V to GND; (3)total supply voltage (VCC to VSS), bipolar operation only: 12V; (4)power dissipation: 500mW; (5)storage temperature range: –65°C to 150°C; (6)lead temperature (soldering, 10 sec): 300°C.

Features

LTC1400CS8 features: (1)complete 12-Bit ADC in SO-8; (2)Single Supply 5V or ±5V Operation; (3)Sample Rate: 400ksps; (4)Power Dissipation: 75mW (Typ); (5)72dB S/(N + D) and – 80dB THD at Nyquist; (6)No Missing Codes over Temperature; (7)Nap Mode with Instant Wake-Up: 6mW; (8)Sleep Mode: 30μW; (9)High Impedance Analog Input; (10)Input Range (1mV/LSB): 0V to 4.096 or ± 2.048V; (11)Internal Reference Can Be Overdriven Externally; (12)3-Wire Interface to DSPs and Processors.
