Product Summary
The LMX1511TM is a high performance frequency synthesizer with integrated prescalers designed for RF operation up to 1.1 GHz. It is fabricated using the ABiC IV BiCMOS process of National. The device contains dual modulus prescalers which can select either a 64/65 or a 128/129 divide ratio at input frequencies of up to 1.1 GHz. The applications of the LMX1511TM include: Cellular telephone systems(AMPS, NMT, ETACS), Portable wireless communications(PCS/PCN, Cordless), Advanced cordless telephone systems(CT-1/CT-1a, CT-2, ISM902-928), Other wireless communication systems.
Parametrics
LMX1511TM absolute maximum ratings: (1)Power Supply Voltage VCC: -0.3V to +6.5V; VP: -0.3V to +6.5V; (2)Voltage on Any Pin with GND e 0V (VI): -0.3V to +6.5V; (3)Storage Temperature Range (TS): -65℃ to +150℃; (4)Lead Temperature (TL) (solder, 4 sec.): +260℃.
Features
LMX1511TM features: (1)RF operation up to 1.1 GHz; (2)2.7V to 5.5V operation; (3)Low current consumption: ICC = 6 mA (typ) at VCC = 3V; (4)Dual modulus prescaler: 64/65 or 128/129; (5)Internal balanced, low leakage charge pump; (6)Small-outline, plastic, surface mount JEDEC, 0.150 wide, (1501A) or TSSOP, 0.173 wide, (1511) package.

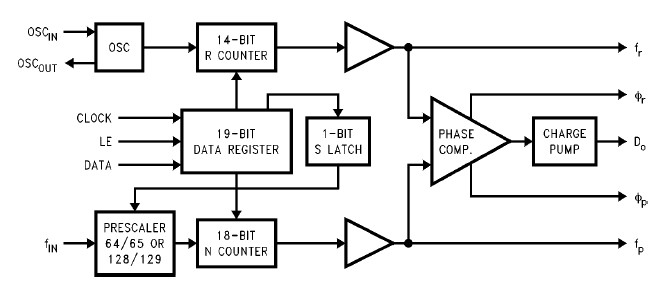

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMX1511TMX |
|
IC FREQ SYNTHESZR 1.1GHZ 20TSSOP |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
LMX1501A |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
LMX1501AMX |
|
IC FREQ SYNTHESIZR 1.1GHZ 16SOIC |
Data Sheet |
Negotiable |
|
||||||
|
LMX1511 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
LMX1511TMX |
|
IC FREQ SYNTHESZR 1.1GHZ 20TSSOP |
Data Sheet |
Negotiable |
|
||||||
|
LMX1600 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
LMX1600EVAL |
National Semiconductor (TI) |
Other Development Tools LOW COST DUAL PLL EVAL BOARD |
Data Sheet |
|
|
||||||
