Product Summary

The LGU2G561MELC is a aluminum electrolytic capacitor.

Parametrics

LGU2G561MELC absolute maximum ratings: (1)category temperature range: -40 to 105℃ (16 to 250V); -25 to 105℃ (315 to 450V); (2)rated voltage range: 16 to 450V; (3)rated capacitance range: 47 to 47000μF; (4)capacitance tolerance: ±20% at 120Hz, 20℃.

Features

LGU2G561MELC features: (1)Withstanding 3000 hours application of rated ripple current at 105℃; (2)Compliant to the RoHS directive (2002/95/EC).

Diagrams

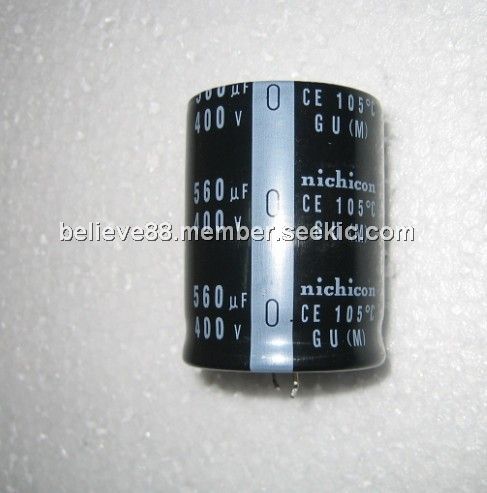

LGU2G561MELC Drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LGU2G561MELC
LGU2G561MELC
Nichicon
Aluminum Electrolytic Capacitors - Snap In 400volts 560uF 0.2L/S
Data Sheet
0-1: $7.64
1-25: $7.43
25-50: $6.53
50-100: $5.57
