Product Summary
The INA-52063-TR1 is a 1.5 GHz Low Noise Silicon MMIC Amplifier. It offers excellent gain and power output for applications to 1.5 GHz. Packaged in an ultraminiature SOT-363 package, the INA-52063-TR1 requires half the board space of a SOT-143 package. The applications of the INA-52063-TR1 include Amplifier for Cellular, Cordless, Special Mobile Radio, PCS, ISM, Wireless LAN, DBS, TVRO, and TV Tuner Applications.
Parametrics
INA-52063-TR1 absolute maximum ratings: (1)VCC, Supply Voltage, to Ground: 12V; (2)Pin, CW RF Input Power: +13dBm; (3)Tj, Junction Temperature: 150℃; (4)TSTG, Storage Temperature: -65 to 150℃.
Features
INA-52063-TR1 features: (1)Ultra-Miniature Package; (2)Single 5 V Supply (30 mA); (3)22 dB Gain; (4)8 dBm P1dB; (5)Unconditionally Stable.

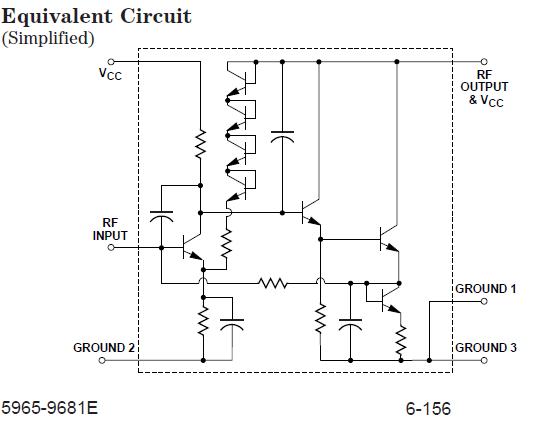

Diagrams
 |
