Product Summary

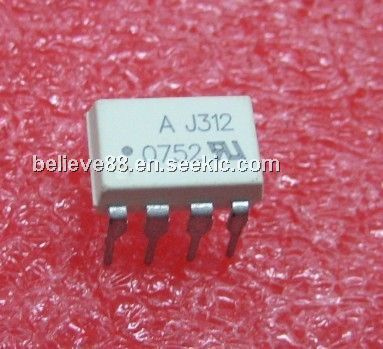

The HCPL-J312-000E is a 2.5 Amp output current IGBT gate drive optocoupler. The HCPL-J312-000E has an insulation voltage of VIORM=891Vpeak and the VIORM=630V peak is also available with the HCPL-3120 (Option060).
Parametrics
HCPL-J312-000E absolute maximum ratings: (1)Storage Temperature: -55 to 125°C; (2)Operating Temperature: -40 to 100°C; (3)Average Input Current: 25 mA; (4)Supply Voltage: 35 Volts; (5)Output Power Dissipation: 250 mW; (6)Total Power Dissipation: 295 mW.
Features
HCPL-J312-000E features: (1)2.5 A maximum peak output current; (2)2.0 A minimum peak output current; (3)0.5 V maximum low level output voltage (VoL); (4)Eliminates need for negative gate drive; (5)Icc = 5 mA maximum supply current; (6)Under Voltage Lock-Oout protection (UVLO) with hysteresis; (7)Wide operating Vcc range: 15 to 30Volts; (8)500 ns maximum switching speeds; (9)Industrial temperature range: -40°C to 100°C.

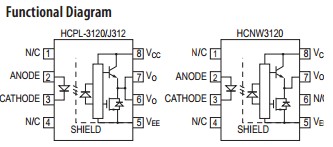

Diagrams
