Product Summary

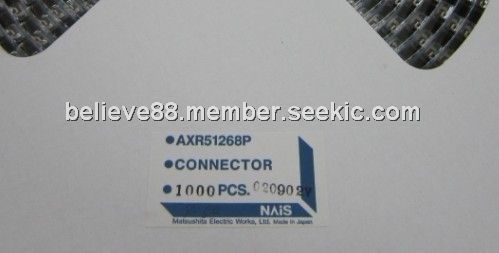

The AXR51268P is a ultra low profile type connector for portable equipment such as cellular phone.
Parametrics
AXR51268P absolute maximum ratings: (1)No. of signal terminals: 26 contacts; (2)Type: On board mounting type (A type); (3)No. of coaxial: None; (4)No. of battery terminal: None; (5)Signal contact current: 0.5A; (6)Battery contact current: 2A; (7)Contact resistance of Signal contact: Max. 110mΩ (Initial); (8)Contact resistance of Battery contact: Max. 50mΩ (Initial).
Features
AXR51268P features: (1)Compact receptacle helps to design lighter, slimmer, smaller devices; (2)I/O connector for portable equipment; (3)Coaxial portion with switching function (1 Form B configuration) can be applied up to 2GHz; (4)Connection of incorrect pairs is prevented by cross-manufacturer mating error prevention key.
Diagrams
 |
