Product Summary
The AT27LV512A-90JU is a high-performance, low-power, low-voltage 524,288-bit onetime programmable read-only memory (OTP EPROM) organized as 64K by 8 bits. It requires only one supply in the range of 3.0 to 3.6V in normal read mode operation, making it ideal for fast, portable systems using battery power. The AT27LV512A-90JU has additional features to ensure high quality and efficient production use. The Rapid Programming Algorithm reduces the time required to program the part and guarantees reliable programming.
Parametrics
AT27LV512A-90JU absolute maximum ratings:(1)Temperature Under Bias: -40°C to +85°C; (2)Storage Temperature : -65°C to +125°C; (3)Voltage on Any Pin with Respect to Ground: -2.0V to +7.0V; (4)Voltage on A9 with Respect to Ground: -2.0V to +14.0V; (5)VPP Supply Voltage with Respect to Ground: -2.0V to +14.0V.
Features
AT27LV512A-90JU features: (1)Fast Read Access Time – 90 ns; (2)Dual Voltage Range Operation; (3)Compatible with JEDEC Standard AT27C512R; (4)Low Power CMOS Operation; (5)JEDEC Standard Packages; (6)High Reliability CMOS Technology; (7)Rapid Programming Algorithm – 100 μs/Byte (Typical); (8)CMOS and TTL Compatible Inputs and Outputs; (9)Integrated Product Identification Code; (10)Industrial Temperature Range.

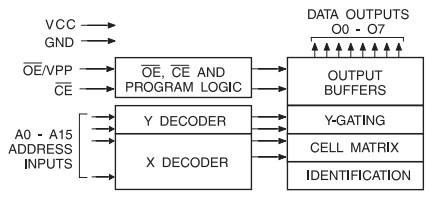

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AT27LV512A-90JU |
Atmel |
EPROM 512Kb (64Kx8) OTP 3V 90ns |
Data Sheet |
|
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
AT27BV010 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
AT27BV010-12JC |
Atmel |
EPROM 128kx8 120ns |
Data Sheet |
Negotiable |
|
|||||||||||||
AT27BV010-12JI |
IC OTP 1MBIT 120NS 32PLCC |
Data Sheet |
Negotiable |
|
||||||||||||||
AT27BV010-12TC |
IC OTP 1MBIT 120NS 32TSOP |
Data Sheet |
Negotiable |
|
||||||||||||||
AT27BV010-12TI |
IC OTP 1MBIT 120NS 32TSOP |
Data Sheet |
Negotiable |
|
||||||||||||||
AT27BV010-12VC |
IC OTP 1MBIT 120NS 32VSOP |
Data Sheet |
Negotiable |
|
