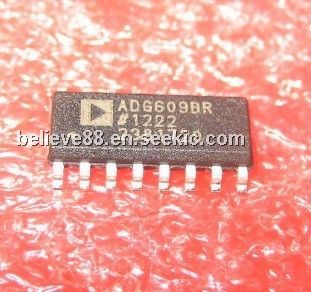

Product Summary

The ADG609BRZ is monolithic CMOS analog multiplexers comprising eight single channels and four differential channels respectively, fully specified for ±5 V, +5 V and +3 V power supplies. The ADG609BRZ switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1 and A2.

Parametrics

ADG609BRZ absolute maximum ratings: (1)VDD to VSS : +13 V; (2)VDD to GND: –0.3 V to +6.5 V; (3)Continuous Current, S or D: 20 mA; (4)Storage Temperature Range: –65°C to +150°C; (5)Junction Temperature: +150°C.

Features

ADG609BRZ features: (1)+3 V, +5 V, 65 V power supplies; (2)VSS to VDD analog signal range; (3)low on resistance (30Ω max); (4)low power dissipation (1.5 μW max); (5)break-before-make construction.

Diagrams

ADG609BRZ functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG609BRZ
ADG609BRZ

IC MULTIPLEXER DUAL 4X1 16SOIC
Data Sheet
0-1: $3.07
1-10: $2.74
10-100: $2.25
100-250: $2.03
250-500: $1.82
500-1000: $1.53
1000-2500: $1.46
ADG609BRZ-REEL
ADG609BRZ-REEL

IC MULTIPLEXER DUAL 4X1 16SOIC
Data Sheet
0-2500: $1.46
