Product Summary
The AD9880KSTZ-150 is a complete 8-bit 150 MSPS monolithic analog inter-face. The AD9880KSTZ-150 is optimized for capturing component video (YPbPr) and RGB graphics signals. Its 150 MSPS encode rate capability and full power analog bandwidth of 330 MHz supports all HDTV formats (up to 1080 p) and FPD resolutions up to SXGA (1280 × 1024 @ 75 Hz). The AD9880KSTZ-150 offers designers the flexibility of an analog interface and high definition multimedia interface (HDMI) receiver inte-grated on a single chip. Also included is support for high band-width digital content protection (HDCP).
Parametrics
AD9880KSTZ-150 absolute maximum ratings: (1)VD: 3.6 V; (2)VDD: 3.6 V; (3)DVDD: 1.98 V; (4)PVDD: 1.98 V; (5)Analog Inputs: VD to 0.0 V; (6)Digital Inputs: 5 V to 0.0 V; (7)Digital Output Current: 20 mA; (8)Operating Temperature: -25 to + 85℃; (9)Storage Temperature: -65 to + 150℃; (10)Maximum Junction Temperature: 150℃; (11)Maximum Case Temperature: 150℃.
Features
AD9880KSTZ-150 features: (1)Analog/HDMI dual interface; (2)Supports high bandwidth digital content protection; (3)RGB-to-YCbCr 2-way color conversion; (4)Automated clamping level adjustment; (5)1.8 V/3.3 V power supply; (6)100-lead LQFP Pb-free package; (7)RGB and YCbCr output formats; (8)Analog interface; (9)Digital video interface; (10)Digital audio interface.

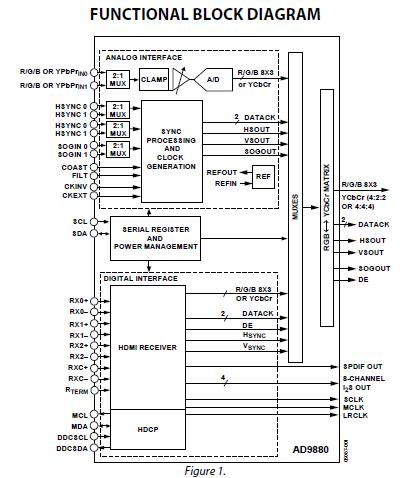

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() AD9880KSTZ-150 |
![]() |
![]() IC INTERFACE/HDMI 150MHZ 100LQFP |
![]() Data Sheet |
![]()
|
|
||||||||||||||||
