Product Summary

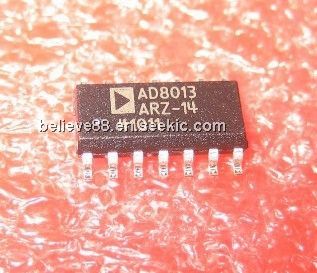

The AD8013ARZ is a low power, single supply, triple video amplifier. Each of the three amplifiers has 30 mA of output current, and is optimized for driving one back terminated video load (150Ω) each. Each amplifier is a current feedback amplifier and features gain flatness of 0.1 dB to 60 MHz while offering differential gain and phase error of 0.02% and 0.06°. This makes the AD8013ARZ ideal for broadcast and professional video electronics. The AD8013ARZ offers low power of 4 mA per amplifier max and runs on a single +5 V to +13 V power supply.

Parametrics

AD8013ARZ absolute maximum ratings: (1)Supply Voltage: 13.2 V Total; (2)Differential Input Voltage: Output ±6 V (Clamped); (3)Storage Temperature Range N and R Package: –65°Cto +125°C; (4)Operating Temperature Range AD8013A: –40°C to +85°C; (5)Lead Temperature Range (Soldering 10 sec): +300°C.

Features

AD8013ARZ features: (1)Three Video Amplifiers in One Package; (2)Drives Large Capacitive Load; (3)Low Power; (4)High Speed; (5)High Speed Disable Function per Channel Turn-Off Time 30 ns; (6)Easy to Use: 95 mA Short Circuit Current.

Diagrams

AD8013ARZ pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8013ARZ-14
AD8013ARZ-14

IC AMP VIDEO SGL SUPP LP 14-SOIC
Data Sheet
0-1: $6.59
1-10: $5.93
10-100: $4.88
100-250: $4.48
250-500: $4.08
500-1000: $3.56
1000-2500: $3.51
AD8013ARZ-14-R7
AD8013ARZ-14-R7

IC AMP VID SGL SUPP LP 14SOIC TR
Data Sheet
0-750: $3.77
AD8013ARZ-14-RL
AD8013ARZ-14-RL

IC AMP VID SGL SUPP LP 14SOIC TR
Data Sheet
0-2500: $3.51
